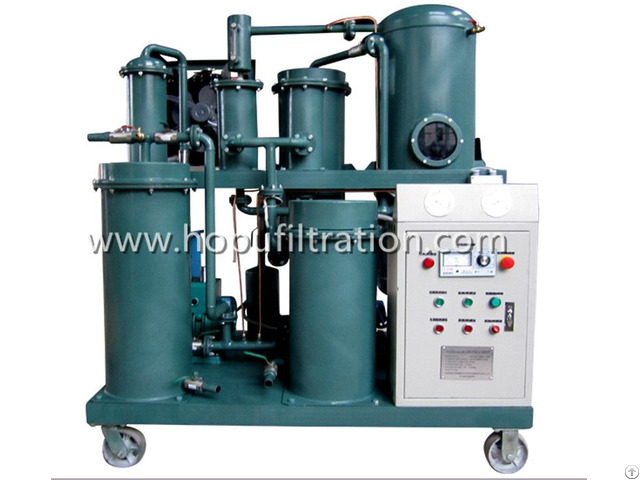

Vacuum Lubricant Oil Filtration Machine for Series TYA

Vacuum Lubricant Oil Purifier Vacuum Lubricant Oil Filtration Machine for Series TYA TYA series Vacuum Lubricant Oil Filtration Machine is applied to recover and purify various high-precision lubricating oil, hydraulic oil, compressor oilgear oil, heat treatment oil, cutting fluids, quench oil and various industrial oils etc

It can remove free water, dissolved water, free gas, acid, emulsification, and eliminate impurity, big and small particulates, dust, and foam in the waste oil.

It can also eliminate metallic impurity, colloid, slude and the volatile matter (for example ethyl alcohol, gasoline, ammonia and so on).

It enhances the oil quality, restores the oil viscosity, augments the flash point and improves the operational performance.

Guaranteed the hydraulic system and the dynamic system, the lubrication system normal operation, so the machine is suitable for many lines, such as the mine, metallurgy, electric power, transportation, drilling and so on.

Features

1 - Strong capability of breaking emulsification.

2 - The combination of coalescing separation and vacuum dewatering.

3 - The unique degas and dewater system: Using the Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology.

4 - Advanced dielectric condensation device

5 - With H.P.M high polymeric absorbing material

6 - Strong ability to filter the impurity, strong capability of breaking emulsification.

We adopt the high quality filter materials, which has a good function in anti-corrosive, thermos table, mechanical strength.

Especially, the precision of eliminates impurity is high and the service life is long.

Also, it has a large volume for storing the impurities.

Technical specs( It will be changed as customer's requirements)

Item Unit TYA-10 TYA-20 TYA-30 TYA-50 TYA-100 TYA-150 TYA-200 TYA-300

Flow Rate L/min 10 20 30 50 100 150 200 300

Vacuum Degree MPa -0.06 ～ -0.095

Working Pressure MPa ≤0.4

Temperature ℃ 0 ～ 100

Power Supply 3phrase, 50Hz, 380V(or as needed)

Working Noise dB(A) ≤75 ≤75 ≤75 ≤78 ≤78 ≤78 ≤80 ≤82

Heating power kW 36 40 45 72 80 90 120 135

Total power KW 38 42 47 75 87 101 135 147

Inlet/outlet caliber mm 25 25 25 32 42 50 50 60

Weight Kg 450 550 600 750 850 1000 1200 1500

Dimension Length mm 1500 1500 1500 1600 1750 1900 1900 2100 Width mm 1000 1050 1050 1150 1250 1600 1700 1700 Height mm 1200 1600 1600 1700 1800 1950 2000 2100

Parameter After Purification

Demulsification value min New oil ≤15min, running oil ≤30min

Water Content PPM ≤20

Gas Content % ≤o.

1

Cleanness NAS ≤5grade
