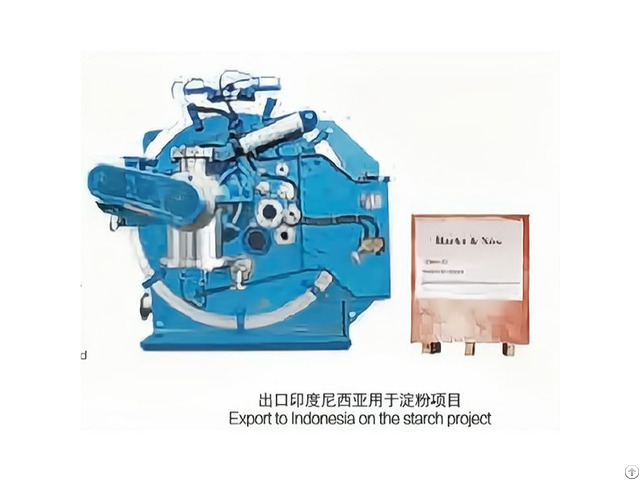

Siphon Scraper Centrifuge - China

RYGKH Working principle

Except centrifuge force like the other common centrifuge Siphon centrifuge also has a kind of siphon draught force similar to vacuum pipe.

When the centrifuge is of no load .

the counter-pulse pipe feeds the liquid to siphon chamber and the liquid is forced to the clearance through the via hole on the drum of siphon chamber .

Then air of siphon pipe is eliminated and a layer liquid forms on the filtering media, s0 as to make the feeding more even .

Then feeding starts, the siphon pip rotates to a certain position and it turns to a lower position required after a certain period .

When the feeding is finished, the siphon pipe turns to the lowest position ( Max diameter place of siphon chamber ) .

After the suspension liquid comes into the drum, solid products are left on the filter cloth while the liquid is forced to go through the filter cloth and internal drum and collected in the clearance between internal and external drum, then it flows into the siphon chamber through drum and via hole .

Next the liquid will be draught by siphon pipe and the deposited solid will be dewatered and scraped by scraper which is driven by oil cylinder.

And then the solid falls out through hopper .

When discharging is finished, centrifuge begins to clean the mesh .

The siphon centrifuge not only washes the filter cloth in the drum, but also feeds the washing water to siphon chamber : By controlling the upper and lower rotation of siphon pipe, liquid can counter-pulse wash the filter mesh from the internal drum .

The washing duration and times are decided by product characteristic and when the washing is finished, carry out the next circulative processing cycle.
