N95 Mask Automatic Production Line

This N95 mask making machine is an automatic folding mask production line.

N95 Automatic Mask Machine N95 Automatic Mask Machine Introduction

This machine is an automatic folding mask production line (typical models such as N95 masks).

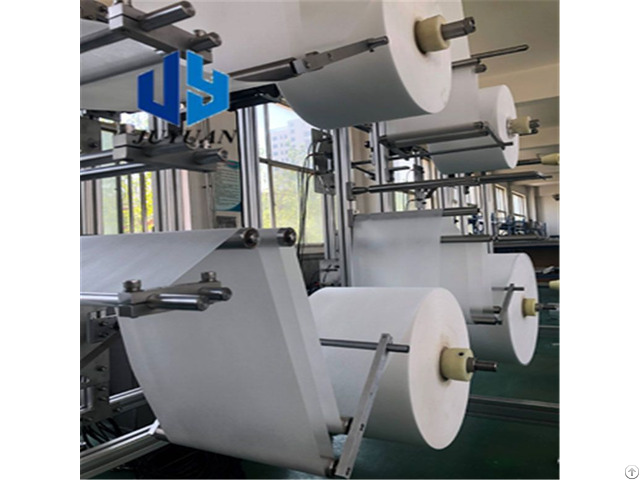

The equipment is loaded in full rolls.

Multi-layer non-woven fabric rolls are composite roll welded.

The nose line is unwound and cut and welded.

The two roll ear straps are automatically unwound.

1 - After fixed-length cutting and welding, the body is folded in half, and after ultrasonic welding and fusion, the final mask is rolled and formed.

If You Have Any Questions On Surgical Mask Making Machine and Medical Mask Making Machine and N95 Mask Production Line.

We Will Give The Professional Answers To Your Questions.

N95 Automatic Mask Machine Machine Parameters NO.

Model FK-1018

1 Size 10000mm(L)*1800(w)*1950(h )

2 Weight Weight≤5000kg

3 Engine Siemens

4 System Siemens

5 Cylinder Sandele

6 Voltage 220VA±5％50HZ

7 Bearing seat NSK

8 Guide HIWIN

9 Compressed air 0.4-0.6Mpa

10 Speed 50PCS/min

11 Pass rate 99％

12 Power 10KW N95 Automatic Mask Machine Machine Supporting Facilities

1 - The equipment is equipped with cloth unwinding M a x 6 sets and the winding diameter M a x 6 0 0 m m.

2 - The material unwinding adopts the active unwinding method, which automatically unwinds according to the position of the tension roller.

3 - Nose bar welding module: including nose bar unwinding, nose bar leveling, fixed length conveying, cutting, welding function.

4 - The material compound roll welding unit: adopts the welding method of ultrasonic welding head and steel die, the flatness and position of the roller can be adjusted when welding.

5 - Earband welding unit; the earband welding of this equipment adopts earband type (non-head-mounted), the whole roll is loaded, after driving and tension control, the fixed length is cut, the length of the earband is adjustable, ultrasonic welding is used Welding is firm.

6 - The material driving unit adopts the servo motor to control the main driving roller to drive the cloth, the operation is stable, and the pressure can be adjusted precisely.

7 - Folded unit: Adjustable triangular plate is adopted, and the height and angle can be adjusted to ensure that the mask is neutrally folded in half.

8 - Forming welding unit: It adopts ultrasonic welding, the welding is firm, the pattern is clear, and the technical parameters of the ultrasonic welding system can be adjusted.

9 - Forming and cutting unit: rolling cutter wheel: knife pad wheel.

Pressure can be adjusted, material: high speed steel.

10 - The waste material is separated into units, and the waste material automatically falls into the frame.
