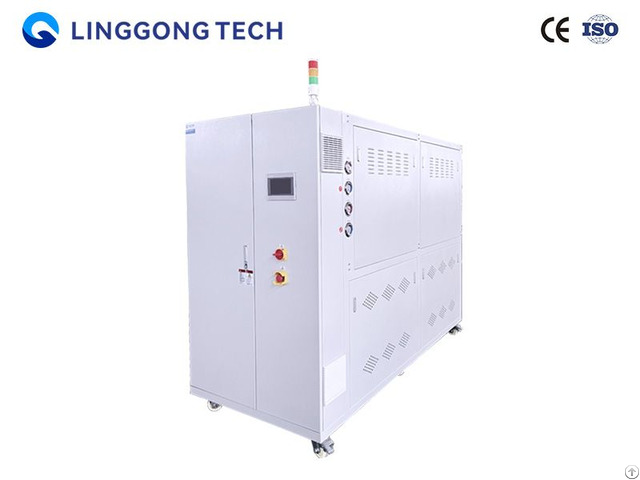

Low Temperature Chiller Supplier - China

The conditioning device is specifically designed for thermal and fluid dynamics test of the liquid-cooled battery pack/battery module.

Equipped with high-precision sensors It can test the flow rate, pressure, temperature and sealing of the liquid-cooled battery.

Low Temperature Series (Temperature Control Range -40~85℃, Flow control, Pressure Control) Cooling power range: 02KW--20KW.

Temperature control range: -40~85℃.

Flow control range: 2-20L/min.

Heating power: Output channel: Output channel: 1, supporting multiple channels.

The control unit of the unit is operated by programmed software.

Multiple communication interfaces with protocols are provided for communication with a higher-level automation system.

Display the temperature, flow rate and pressure etc.

Set relevant function.

Check reason for malfunction.

Support data export.

Device Protection The conditioning unit is protected from damage by safety valves, flow monitors and thermostats and various electrical protection components etc.

At the same time, it also has self-diagnosis function and can record the malfunction information.

This ensures high reliability and to check the reason of device fault easily in case of a malfunction occurring.

1 - Adjustable and controlled in the whole temperatrue range of -40℃～120℃(can be extented);

2 - Equipped with various of protective measures for safety assurance;

3 - Control panel with large size, combined with PC remote intellegent control, easy to operation;

4 - Support multiple communication modes ;

5 - Components using well-known brands;

6 - Easy to install, provide installation & commissioning, operation and maintenance training.

General specifications

Model LGTPS-FC05LN40 C2~4 LGTPS-FC10LN40 C2~4 LGTPS-FC15LN40 C2~4 LGTPS-FC20LN40 C2~4

Cooling Capacity(kW) 5 10 15 20

Suction Pressure Control Accuracy(kPa) ±30 ±30 ±30 ±30

Condensing Pressure Co ntrol Accuracy(kPa) ±50 ±50 ±50 ±50

Pressure Measurement Resolution(kPa) 0.1 0.1 0.1 0.1

Temperature Measurem ent Resolution(℃) 0.1 0.1 0.1 0.1

Subcoolirg Degree(The Front Temperature Of

Expansion Valve)(℃) 0~6 0~6 0~6 0~6

Overheating Degree(Bat tery Outlet Temperature)(℃) 0~5 0~5 0~5 0~5

Cooling Type air cooling air cooling air cooling air cooling

RS485/CAN/Ethernet √ √ √ √

PLC Control System √ √ √ √

Noise(dB) ≤75 ≤75 ≤75 ≤75

Power Supply AC380V/50Hz AC380V/50Hz AC380V/50Hz AC380V/50Hz
