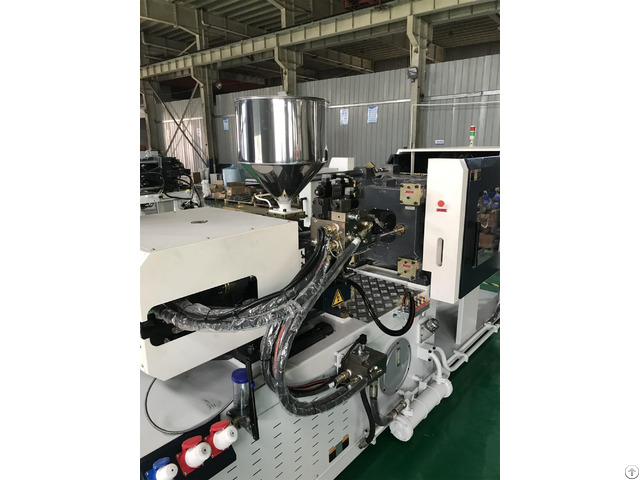

HC140 140Ton 1400KN Clamping Force General Purpose Plastic Injection Molding Machine

General Purpose Plastic Injection Molding Machine

HC Series General Purpose Plastic Injection Machine

Injection molding machine Specifications Unit HC140

INJECTION UNIT A B C

Screw diameter mm 38 2 45

Screw L/D ratio L/D 21 19 17.7

Theoretical shot volume cm3 193 236 270

Shot weight(PS) g 176 215 246

Injection rate cm3/s 102 124.6 143

Injection pressure Mpa 175 143 124

Max.

screw speed rpm 190

CLAMPING UNIT Clamping force kN 1400

Opening stroke mm 380

Distance between tie-bars mm 417 x 417

Max.

mold height mm 450

Min.

mold height mm 160

Ejector stroke mm 120

Ejector force kN 46

OTHERS Drive power kW 13

Heating capacity kW 8.2

Machine dimensions m 4.4 x 1.3 x 1.85

Machine weight t 3.8

Oil tank capacity L 180

CLAMPING PART:

We creates independently the box type high rigidity mold structure for the clamping part; the clamping support guide rail adopts the high rigidity design to reduce the deformation effectively; the toggle structure optimized and designed with computer achieves exceptionally stable and rapid clamping; and the enlarged mold thickness, the gear mold regulation unit and the internally installed mechanical safety lock as well as the 180-degree rotary product blanking bucket, all help achieve your individual demands and make your operation easier!

Box-type mold platen design, strong and durable.

High quality copper bushes on tie bars guiding parts, working life long.

Push platen adopts the self-lubrication copper bushes, long life, high speed & precision.

Thicken central of platen, effective for mold and machine life and product precision.

Enhanced strength for fixed platen, improve products stability and quality.

Special designed machine base, clamping unit supported by the base girder, ensure machine base perfect balance, and few deformation after long time working.

Full supported injection base, avoid it up and down during high pressure injection.

High quality SKD61 screw tip, check ring and thrust ring, 38CrMoAl screw and barrel.

Self-lubrication bushes ensure high repeatability precision and long life.

Centralized lubrication for injection unit, easy for feeding lubrication grease.

Chimney exhaust designed nozzle purge guard, suitable for clean-plant production.

Barrel PID controls the difference of temperature less error.
