Full Automatic Silicone Adhesive Soft Packaged Machine - China

full-automatic silicone adhesive soft-packaged machine

sausage clipping machine

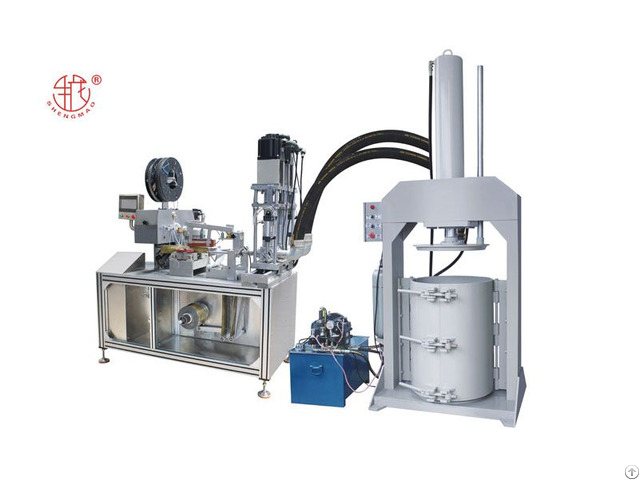

As the latest automatic production supporting equipment integrated with compound aluminum film –＞ tube-making filling and double-card sealing, JL-06 full-automatic compound aluminum film soft-bag filling double-card sealing machine is suitable for soft-packaged tube-making –＞ filling of glass cement and pasty materials and double-card sealing formation.

The whole process of filling, sealing, card punching and cutting is controlled by PLC; the production process is in full-automation without manual intervention.

The proportional valve is adopted; and the glue filling weight is precise.

As a brand-new automatic production line, it can replace the sub-production complex process of former tube-making –＞ filling –＞ card punching, etc; and the process has improved the product quality and reduced the production cost.

The machine is mechanically driven by servo motor; multiple groups of cylinders are combined so as to finish the card punching function; and the machine has a compact structure and reliable drive.

The parts and drive parts are manufactured by stainless steel and high-quality steel.

The general mechanical performance and corrosion resistance of the complete machine can meet your production demands.

I.

Brief introduction of structure

The double-card sealing machine is controlled by import PLC and mainly composed of a machine base, a machine body, a discharging device, a gas circuit system, an operation device, a silk plate support, etc.

II.

Main technical parameters

1 - Boundary dimension: length*width*height=1520* 810*2000 (mm);

2 - Total weight: around 280kg;

3 - Height from card punching centre to the ground: 1000-1020mm;

4 - Card punching speed: 15-40t/min;

5 - Power: three-phase AC 380V;

6 - Gas source: working pressure: 0.40-0.8Mpa;

7 - Gas consumption: 0.01m3/min;

8 - Applicable card type: Great Wall Card

9 - Applicable range: fold diameter: 25-50mm
