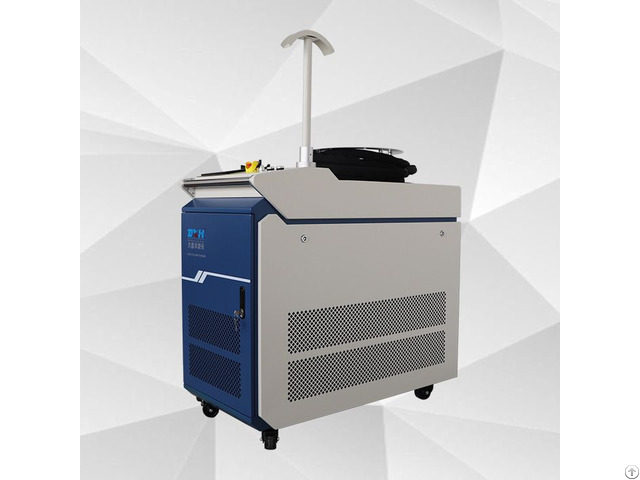

Flexible And Convenient Cnc Machine Laser Beam Welding - China

Machine Feature:

1 - The required amount of incoming heat can be reduced to the minimum.

The BAI range of metallographic change in the heat-affected zone is small, and the deformation caused by heat conduction is also the lowest.

2 - The welding process parameters of 32mm plate thickness single-pass welding have been verified to be qualified, which can reduce the time required for thick plate welding and even save the use of filler metal.

3, no need to use the electrode, no electrode pollution or damage concerns.

And because it does not belong to the contact welding process, the loss and deformation of the machine and tools can be reduced to a minimum.

4, the laser beam is easy to focus, alignment and guided by optical instruments, can be placed in the appropriate distance from the workpiece, and can be guided between the tools or obstacles around the workpiece, other welding rules due to the above space restrictions and can not play.

5, the workpiece can be placed in a closed space (after vacuum or internal gas environment under control).

6, laser beam can focus on a small area, can weld small and close interval parts.

7, A wide range of weldable materials, can also be engaged with each other a variety of heterogeneous materials.

8, easy to automate high-speed welding, can also be digital or computer control.

9 - When welding thin material or fine diameter wire, it will not be as easy as arc welding to have the trouble of backmelting.

10, not affected by the magnetic field (arc welding and electron beam welding are easy), can accurately align the welding parts.

11, can be welded with different physical properties (such as different resistance) of two metals 12, no vacuum, also do not need to do ray protection.

13, if the perforated welding, weld pass depth to width ratio can reach 10: 1
