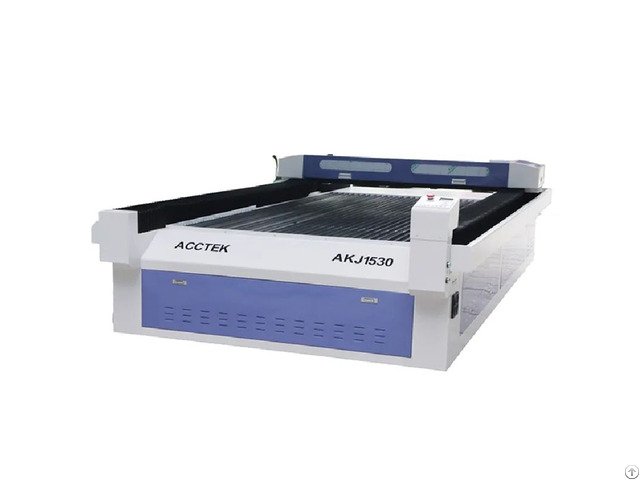

Fast Speed 1530 Wood Engraving Acrylic Laser Cutting Machine Price - China

Model AKJ1530 Working area 1500*3000MM Laser type Sealed CO2 laser tube, water-cooling, wavelength 10.6um Laser power 150W Laser life 10000 hrs Max.

Cutting thickness Acrylic : 25mm.

Plywood: 8-10mm Cooling type Water-cooling (5-30°C tap water or purified water) Working Table Aluminium alloy knife-strip working table Y axis guide rail Imported Taiwan HIWIN square guide rail Engraving Scanning Speed 0 - 70000mm/min Cutting Speed 0 - 40000mm/min Laser Output 1-100% software setting Min.

Shaping character Chatacter2.0mm×2.0mm, English1.0mm×1.0mm Highest scanning resolution 2500dpi Locating Precision ±0.01mm, red light locating.

Power supply AC220±10%, single phase, 50Hz Operating system DSP offline control system Driving system Stepper Cooling system Industrial water chiller CW5200/3000 Exhaust system Exhaust fan Running environment Temperature: 5-45°C; Humidity: 5-95% (free of condensed water) Software LASERCUT5.3 (original version) Supported graphic Format BMP, DST, GIF, TGA, AI, PLT, DXF, LAS, etc.

Compatible Software CorelDRAW, Photoshop, AutoCAD, TAJIMA, All types of CAD clothing softwares Standard accessories 1.1xcommunication cable 2.1x USB cable 3.1x CD(RDCAM software 5.3/ 6.0 english version) 4.1x air compressor 5.1x exhaust fan 6.1x exhaust fan smoke pipe 7.1x water pipe/air pipe 8 - water chiller cw3000 or 5200 chiller Weight 900kg Recommended spare parts / consumables Laser tube, Power source, Reflect mirror, Focus lens.

Features of co2 laser machine : 1 - For laser tube, we use RECI brand, very popular among customers, its lifetime is 3 times longer than common laser tubes.

2 - We use stepper motor, providing enough power, ensuring high speed of machine.

3 - We use Taiwan HIWIN/PMI linear rail for transmission, to ensure high precision, faster speed, lower noise, and its lifetime is 10 times longer than common rail ways.

4 - we have two kinds of worktable: Aluminum knife table for hard material like wood, acrylic, helping small cutted pieces fall off; and honeycomb worktable for soft material like leather, cloth, to keep the material as flat as possible, ensuring cutting effect.

If you work on both hard and soft material, we can make the table with double use.

5 - The control system is DSP, supporting offline work.

There is USB interface on the panel, so it support U disk, very convenient.

6 - We use Updated RD software LaserworkV8, the latest version.

7 - Red dot will help position the laser, protecting operator.
