Entry Level Co2 Laserr Cutting Machine - China

CO2 laser engraving machine, able to engrave and cut various non-metals, like acrylic, double-color plate, marble, wood, MDF, plywood, textile, leather, glass, paper etc.

Widely applied in craft gifts, souvenir, Chinese paper cutting, advertising signs, clothes, furniture and many other industries.

There are many customers who want to choose a home laser machine because of personal hobbies.

Some customers are just beginning to enter the laser cutting industry and choose an entry-level laser machine for their workshop.

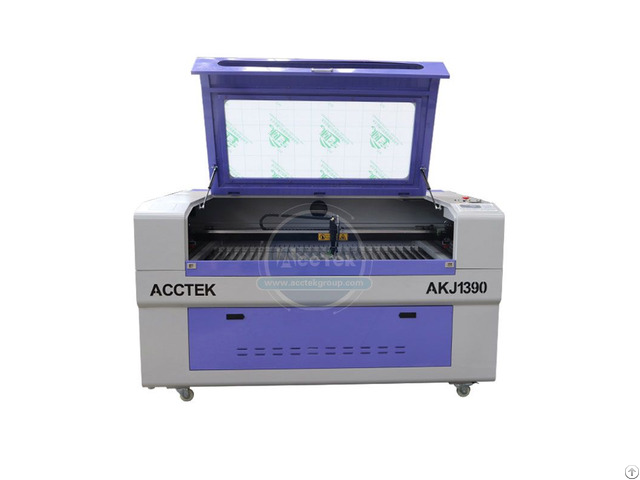

Then this AKJ1390 is a very suitable choice.

AKJ1390 is cheap, easy to operate, and rich in types of materials that can be processed.

It has a good effect whether it is for household processing of small crafts or for workshop production.

Next, ACCTEK will introduce the configuration and features of the laser cutting machine AKJ1390 - If you also need such a machine, you can consult online at any time.

1 - Working Table: Aluminum knife worktable to process hard materials like acrylic, wood and so on.

2 - Laser head: The air pipe has been installed on it.

So that dust will not contact the lens.

The blown air can cool the lens and cool the material surface.

Red light positioning function(Optional).

3 - Tai wan Hiwin rail guide: Special linear guide rail good stability and long service life low noise and high precision.

4 - Shanghai Fulong belt : The Fulong brand belt, wear resistance, good stability, compact structure and low noise.

5 - Stepper Motor: Strong power, reliable performance, safe and fast, ensure the normal operation of the machine.

6 - RECI W2 90W laser tube : 1)RECI laser tube power selection, slim beam, high quality spot.

2)Closed Co2 laser tube, long life stable power.

Insallaton of reinforcement stings, the laser tube is not easy to collide and cause damage when moving the machine.

(EFR, RECI, CDWJ, YONG Ll, Optional)

7 - Singapore three mirrors and one lens:

1)45° mirror adjustment set.

Three point dimming bolt for easier dimming.

2)Imported Lens, suitable for vanous environments, and has high precision and high speed.

8 - RUIDA control pannel: Control system from Shenzhen RD company, no need dongle.

English Control panel is convenient to operate and with Re-carving function after break point or power failure.

Ruida control system Supports USB cable controled by computerand and also offline control system by just a U disk.

The above introduction is the standard configuration of AKJ1390 - If you have other processing needs, you can choose additional tools for the laser cutting machine.

For example, if you need to process cloth or leather, you need to add a honeycomb worktable.

The following are several options, you can choose to add them according to your needs.

1 - Honeycomb worktable:

1)Small holes make sure good supporting performance which is suitable for leather.

cloth and other thin soft materials.

2)The hole of honeycomb worktable is small, so the small work piece can be placed on the table surface to be processed.

2 - Up and down worktable:

The height of the platform can be adjusted, freely to faciliate products of any thickness.

3 - Industrial Water Chiller.

China good quality industrial Air-conditional water chiller, have temperature display and alarm function, so can avoid over burning, and protects the water circulation from electricity-off.

Each laser cutting machine or cnc router machine in the ACCTEK factory is customized according to the needs of customers.

The staff will recommend the most matching plan according to the size, thickness and type of your processing materials to ensure that your laser machine can bring you the best use effect and the best processing quality.

If you are new to the laser cutting machine and do not know how to choose, or if you encounter problems when using the laser machine, you can communicate with us online, and our professionals will answer you in time.

I hope it helps you.
