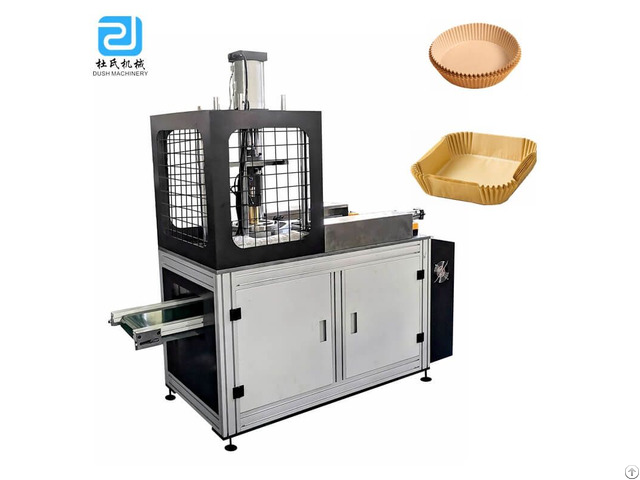

Ds Jh Semi Automatic Air Fryer Paper Baking Liner Making Machine - China

This paper liner machine adopts and updates DS-JG’s automatic paper picking system and shaping function.

In this machine, worker will sort 25pcs paper, then mechanical arm will pick the paper directly, transfer to mold, push to the mold and form the shape by heating, which is designed for large size paper cake tray, air fryer paper liners, etc.

Advantanges:

Easy to operateAutomatic paper feedingAutomatic paper shaping

Size:

Mold is changeableCan be customized size and shape DESCRIPTION

This paper liner machine incorporates the upgraded automatic paper picking system and shaping function from DS-JG.

A worker sorts 25 pieces of paper, after which the mechanical arm directly picks the paper, transfers it to the mold, pushes it into place, and forms the shape via heating.

This design is tailored for large-size paper cake trays, air fryer paper liners, and similarly sized products, while also accommodating small-size applications.

The machine’s primary advantage lies in its ease of controlling the precise weight of the paper.

Paper Liner Machine – High-Efficiency Production for Baking & Food Packaging

Key Features & Benefits

High-Speed Production: Capable of producing 3, 000- 10, 000+ liners per hour, depending on model.

Precision Cutting & Shaping: Consistent sizing for muffin cups, cupcake liners, and food tray inserts.

Multi-Layer Material Compatibility: Works with parchment paper, wax paper, and food-grade PE coatings.

Automated Feeding & Stacking : Reduces manual labor and improves workflow efficiency.

Customizable Dies & Sizes: Adjustable for different liner shapes (round, square, fluted, etc.

).

Durable & Low Maintenance: Heavy-duty construction for long-term industrial use.

TECHNICAL DATA

Suitable Size 250- 450mm plain paper

Raw Material 30- 50gsm anti-oil paper (grease proof paper), aluminum foil paper, etc.

Ration Productivity 5-6 beats/minute, 25 or 50pcs/ beat

Total power 4.0KW

Air Pressure/ Air Flow 0.6m3/ min, >0.8mpa (need to buy an air compressor)

N.W./ G.W. 420kg/ 470kg

Electric Power 220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact supplier for other type

Overall Dimension 1800L* 710W* 1780H (mm)
