Cnc Machine For Steel Tower Details - China

price: contact company for price

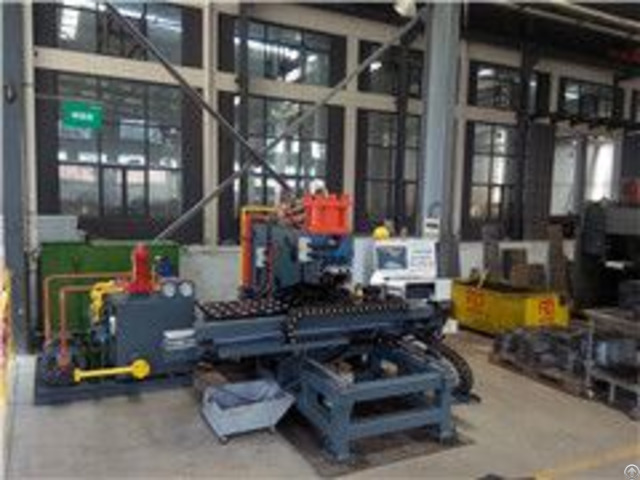

CNC Hydraulic Punching& Drilling& Marking Machine Model CJ 103, Plate Machine, CNC Machine for Steel Tower
DETAILS
CNC technology with servo motors in X/Y/Z three axes.
Integrated with hydraulic, pneumatic and mechanical elements, which are imported world-class components.
Easy programing- can directly use the program data by sample software.
With function of self-diagnostic for failures.
Displaying the drawing of workpieces.
The machine frame is by C–type plate welding structure. There are three die-stations. One of them is marking die-station. Automatic switching die-stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. X & Y axes movements are controlled by servo motor and ball-screw driving. Double-axis CNC system controls the position of punching to automatically make the whole machine process.
Operator may input the size of workpiece to computer for repeated calling program in the future. APPLICABLE INDUSTRY:
This machine is used for punching and marking of joint plate in the field of iron tower. It is also used to punch and mark of metal plate. ADVANTAGES: CJ 103 machine is CNC PUNCHING & DRILLING & MARKING FOR PLATES consisting of Plate Punching and Marking Unit, also equip a Drilling unit. Important functional conponents adopts modular assembly. It is easy to repair.
Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.
When editing, only need to input angles size, hole diameters, positions, and quantities by using CAD/CAM directly conversion. The hydraulic station adopts double pump, single motor, water cooling system, sleeve type coupling for all pipelines. The glue of hose and coupling (EMB) are exported form Germany. ★ All of these models can be customized according to customer requirements. Model CJ100 CJ103 CJ104 CJ120
Max. Size of Work Piece L*W (mm) 1500*800 1500*1000 Max. diameter of punching (mm) Φ32 Φ32 Φ32 Φ40
Plate Thickness of Punching (mm) 3~25 3~25 Max. diameter of Drilling Φ50 Φ50 Punching Force (kN) 1000 1000 Marking Force (kN) 800 800 Min. Distance Between Hole And Plate Edge (mm) Punching 25 800 Drilling Depends on hole diameter Depends on hole diameter Dimensions of Characters (mm) 14*10*20 By Customer’s Request 14*10*20 By Customer’s Request Quantity of Characters 14/18 14/18 Die-Stations Option 3 ~ 7 3 4 Option 3 ~ 7
Feeding Speed of Drilling (mm/min) 20~280 20~280 Strok of Drilling Spindle (mm) 180 180 Rotation Speed of Drilling Spindle (r/min) 100~750 100~750 Precision Accordance with GB2694-2003 Accordance with GB2694-2003 Programming Mode Overall Dimension L*W*H (mm) 3200*3000*2600 3500*3000*2600 ★ All of these models can be customized according to customer requirements.
Hot Sale cnc machine for drilling, punching, milling, shearing, sawing, bending, roll forming, hole processing. The Machine is used for Plate, Angle, Flange, Connection Boards.
For more product information, please click here.


Company Contact:


  • Phone: +8653187459135

  • Address: NO.8521 WEST JINGSHI ROAD HCANGQING DISTRICT, JINAN,shandong,China, shandong, JINAN, China

  • Email: Email


Published date: July 3, 2019 -

  • Business Description: JINAN FAST CNC MACHINERY CO., LTD is devoted to design and manufacture complete processing machines working on the H-beam, U-beam, angles, plates and tubesheets, flanges and other steel profiles with punching, drilling, milling, boring function. JINAN FAST CNC MACHINERY CO., LTD is a professional manufacturer of profile and plate material auto-processing line and machinery.
    MAIN PRODUCTS: CNC full-automatic angle steel processing line, CNC joint plate punching& drilling machine, High-speed CNC drilling& milling machine for tube sheet/flange (PZG), CNC Beam Drilling machine (SWZ), CNC plate drilling& milling machine,CNC drilling& milling tapping machine, Gantry type drilling& milling& boring machine center, double-column rotation angle band-sawing machine, Angel notching machine, (Rolling type) Angle straightening machine, Hydraulic angle cutting machine, Hydraulic marking machine, Plate chamfering ( beveling) machine, Universal& special purpose hydraulic machines, etc.
    Focusing on customers’ value and requirements, JINAN FAST CNC MACHINERY CO., LTD is always ready to establish friendly business relationship with old and new customers for a brilliant future.
    Other Business--Precision Hole Processing
    Drilling sieve plate processing such as paper sieve plates, pulp filter sieve plates, mud extruder sieve plates, mining machinery sieve plates, and environmental protection equipment separating sieve plates, dehydration sieve plates, and vibration sieve plates. Drilling pressure container tube plates and stainless steel plates.
