Cnc Lathe Front Feeding In Vibration - China

price: 10000.00 Dollar US$

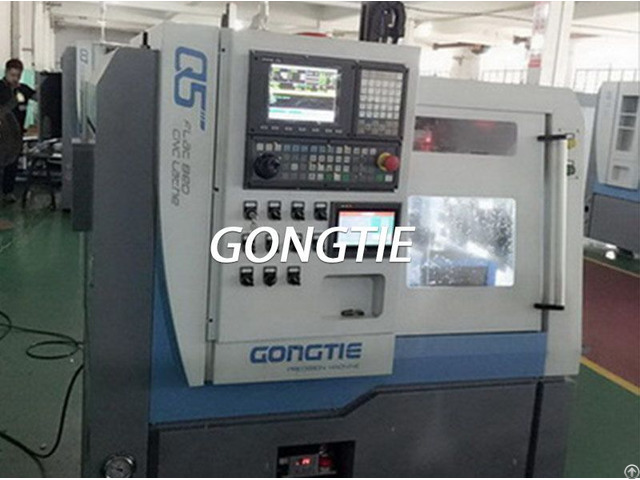

CNC lathe Front Feeding in Vibration
CNC lathe supplier, horizontal cnc lathe for sale
Q series-precise linear guide-way with flat bed in blade row : Q5, Q7, Q5C, Q7C
Q5, Q7, with the features of high precision. high speed. high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes.
* High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.
* High speed: more than 5000RPM for spindle, rapid traverse 20m/s, to reach the high speed machining.
*High-efficiency:with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency.
* Stability: high quality requirement and strict selecting for all the components, to make the machine performance more stable.
Q5C, Q7C, (Synchronous electric spindle)- the best selection for substituting the imported lathes.
* More precision: the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.
* Higher speed: the superior Synchronous electric spindle make the spindle perform higher, faster, and more stable.
* More efficiency: the complete, Synchronous control for the core parts (all the axis), makes the processing efficiency better.
For this technical solution, we use one vibration pan to combine the precise Q series CNC lathe to realize the processing of paratypic and small shafts or pan - type work pieces.
Main parameters UNIT Q5 Q7 Q5C Q7C
Capability Max.swing
diameter mm 400/98 400/98 400/98 400/98 Max.turning
length mm 200 300 200 300 Max.bar
through-hole mm 20(25) 26(35) 20(25) 26(35)
Axis
Stroke X-axistravel mm 280 320 280 320 Z-axistravel mm 240 315 240 315
Rapid
Traverse X/Z-axis m/min 20 20 20 20
Spindle Spindle
nose size N/A A2-4 A2-5 A2-4 A2-5 Spindlethrough holediameter mm 35(37) 48 35(37) 48 Spindle servo motor power kW (asynchronous) 2.2/3.7 (asynchronous) 3.7/5.5 synchronous electric spindle synchronous electric spindle Spindle speed range rpm 0~5000 0~5000 0~6000 0~6000 Work piece clamping method N/A homemade collet homemade collet homemade collet homemade collet
Tool
holder Numberoftools PCS 5 5 5 5 Toolholder
type N/A Dovetail row of knives Dovetail row of knives Dovetail row of knives Dovetail row of knives OPT T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool Toolholder
center height
in radial mm 50 50 50 50 Tool size mm 16*16 16*16 16*16 16*16 Boring rod diameter mm 25 25 25 25
Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002
Others Cooling motor
capacity L 120 120 120 120 hydraulic box
capacity L 60 60 60 60 Required electric power kVA 7 8 7 8 Height from floor to
spindle center mm ≈1070 ≈1070 ≈1070 ≈1070 Overall size
(L*W*H) mm 1500*1250*1650 1650*1300*1650 1500*1250*1650 1650*1300*1650 Net weight kg ≈1200 ≈1700 ≈1200 ≈1700
Standard tool box, instruction, manual, cooling system, lighting system, lubricating system
Optional collet, chuck, foot switch, programmable blowing function, precision c, axial division, living tool, auto door, loading & unloading system, industrial robot, auto bar feeder, parts catching device, chip conveyor, auto detecting system, auto
tool compensation system, high pressure cooling system vibration the diameter and the detail pattern of the vibration pan is subjected to the work pieces provided from the customers. More Product Please View Hifactory.
