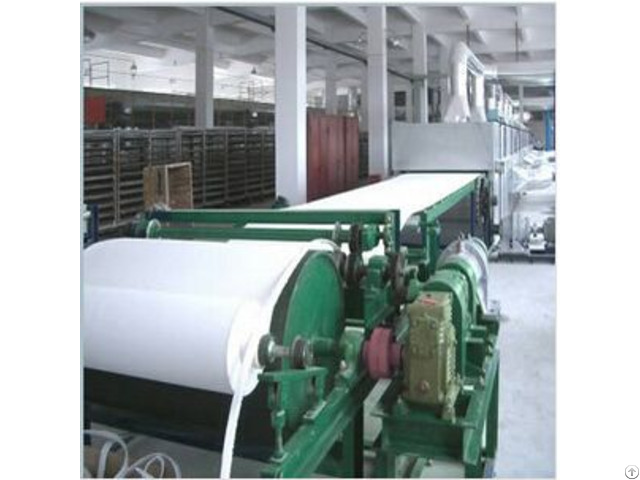

Ceramic Fiber Paper Production Line - China

Ceramic Fiber Paper Production Line can produce 1260 and 1430 grade ceramic fiber paper, with density 180kg/m3 to 200kg/m3, thickness 1mm to 6mm.

The raw material is blown ceramic fiber bulk, which is easier to cut, distribute and to distribute glue evenly.

The ceramic fiber bulk need to chop, cleanout, filtrate shot, to reach the required length of paper production technics, so that the fibers can be districuted into the slurry pool evenly.

In the process of mixing fiber slurry, it needs workers to fill the fibers, matched glue, additives and mix them evenly;then to remove the shot by the water scummer many times, and transport the slurry to the storage slurry pot, for the use of forming machine.

The pump deliver the matched slurry to the forming pool, the fiber slurry are absorbed onto the forming machine under the vacuum negative pressure of the forming machine, to form wet embryo, and do the vacuum dehydration at the same time; after dehydration, the forming paper embryo are delivered to the calender by net cloth;after compression and flat, then the paper embryo are delivered to the drying furnace for drying.

The drying furnace use the composite hot wind drying device, to dry and shape the product;After dry and shape, the products are delivered to the cutting device with the measuing length instrument, for cutting and rolling; At last, for quality control and packing, the finished products are sent to the warehouse for dispatching.

Company Contact:

• Posted By: Super Refractory Ceramic Fiber Co., Ltd.

• Phone: +86-635-6170778

• Address: Gaotang Economic Development Zone, Liaocheng , Shandong , China

• Email:

• Website: http://www.cnceramicfiber.com/

• Business Description: Super Refractory Fiber Co., Ltd supplies ceramic fiber products & ceramic fiber production lines such as soluble ceramic fiber, high- temperature ceramic fiber, and general ceramic fibers these three series production techniques containing spun type, blown type and vacuum molding.

  All kinds of ceramic fiber products are offered here, there are bulk, blanket, board, module, paper etc.

  Our refractory fibers products are widely used in heating equipment, industrial furnaces, insulating engineering and fire proofing works in the industries of steel, metallurgy, mechanical, petrol-chemical, ceramic, glass, electronic, oil and spaceflight etc.

  Our products and equipments are exported to European Union, USA, UK, Russia, Brazil, Turkey, Italy, Pakistan, Iran, Saudi Arab, Syria, India, Japan, Korea etc, total more than forty countries and areas.
