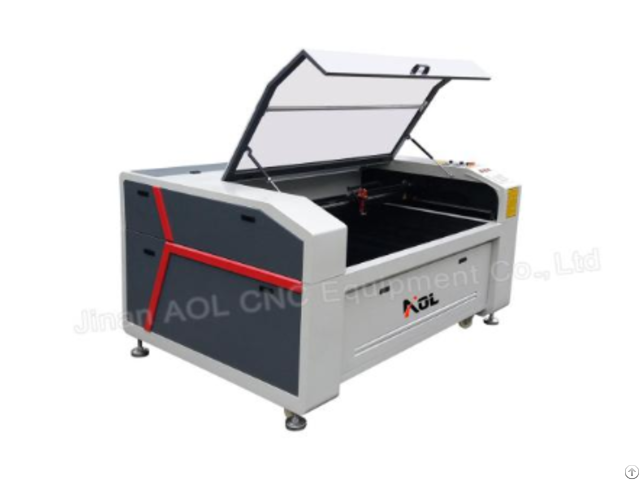

Aol 1390 Glass Crystal Laser Engraving Equipment - China

NO.

1 Function Features: 1 - High stability and high strength mechanical structure casted by high accuracy model which can ensure stable data motion, high speed, high precision, long-term operation without adjustment and the same precision carving.

The design idea of around the body through can add materials from before and behind which for infinite workpiece.

2 - The stability and integrity design idea with advanced industry cooling system and water alarm Automatic Protection Function, improve the stability and safety of continuous operate.

Perfect dust, pollution prevention design greatly improve the overall stability of the machine.

3 - Using flying path design, unique structure, small optical path deviation, high stability, easy to adjust.

Optical Accessories adopts best imported K9 mirrors and ante focusing mirrors whose reflectivity and transmittance is the best with more detailed spot, more cutting edge .

3 - DSP control: Based on upper control unit of PC-PCI, adopt advanced DSP-TMS320, XC2S300 control chip with high speed, stability, anti-interference ability.

Advanced USB control and Flash Disk (U Disk) off-computer control system are optional.

4 - Independent R & D efficient laser power: Adopt new high-voltage switch-mode, PWM master control technology, which is more stable.

NO.

2 Applicable Industry: 1 - Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell 2 - Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.

3 - Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.

4 - Model Industry: Production of construction sand table model and Aircraft Model, etc.

ABC plate cutting, MLB cutting.

5 - Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.

6 - Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.

7 - Product Identification Industry: Security marking products, etc.

NO.

3 Specification: Model;AOL-1390 Engraving and Cutting Area: 1300*900mm Tube type: CO2 sealed glass tube Laser wave: 10.6um Laser Power: RECI-80W Cooling: Pure water (GZ teyu water chiller CW3000) Engraving Speed: 0-75, 000mm/min Cutting Speed: 0-40, 000mm/min Reposition Accuracy: ±0.01mm Minimum Character Size: English: 1mm ; Arabic numbers: 1mm Resolution: 0--4, 000 dpi File output mode: 2.0 USB interface Machine Power: <2, 000W Support Format and Software: PLT, DST, DXF, DWG.

CDR, AI, Auto CAD, Coreldraw, Photoshop: Working Environment Temperature: 0-45°C Drive system: Leashine Stepper motor Control system: Ruida LCD English DSP offline control system Exhaust smoke system: 550W exhaust fan ( Optional Air purified) Working Voltage: 220V, 50HZ/60HZ N.

W: 400KG G.

W: 460KG Warranty time : 1 year for machine (12 months for RECI tube) Package: Wooden case Packing size;1970*1650*1260mm Delivery time；3 working days after received the deposit NO.

4 Packing & Delivery: 1) packing:

The whole film packaging machine;Anti-collision bag edge;No fumigated plywood wooden cases and trays with iron straps.

2) shipping:

We have contracted with a third party logistics company for many years, and our experience in transportation will guarantee your machine safety.

NO.

5 Contact If you have any questions about our machine, please don't hesitate to contact us!

AOL- Mey, jinan

Q Q : 2211823451

Wechat: Zhangyumei7511

Phone : +86 17854214039

WhatsApp: 008617854214039
