Stainless Steel Ball Valve With Bsp Thread Dn6 Dn100 - China

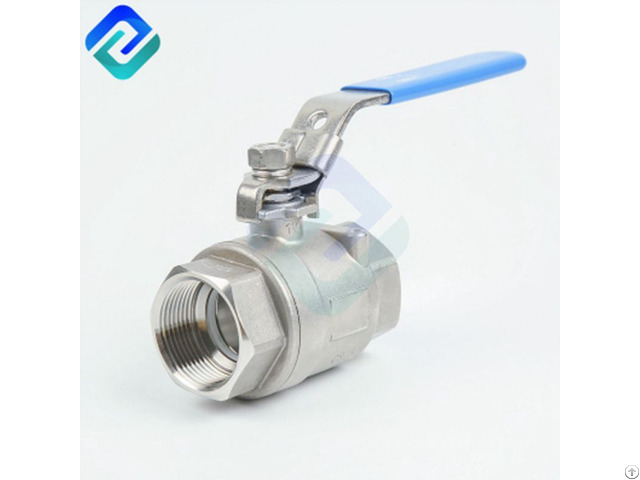

2 pc 304 316 grade stainless steel ball valve with BSP thread DN6~DN100

The stainless steel two-piece ball valve and the flange gate valve are the same type of valve.

The difference is that the closing part is a ball.

The ball rotates around the center line of the valve body to achieve opening and closing.

The Cencho ball valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium.

The two-piece ball valve and the three-piece ball valve are a new type of valve widely used in recent years.

The fluid resistance is small, and the resistance coefficient is equal to that of the pipe section of the same length.

Simple structure, small size and light weight.

It is tight and reliable.

At present, the sealing surface materials of ball valves are widely used with plastics and have good sealing performance.

It is easy to operate and quick to open and close.

It only needs to rotate 90 ° from fully open to fully closed to facilitate remote control.

The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, and the disassembly and replacement are more convenient.

When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium.

When the medium passes through, it will not cause corrosion of the valve sealing surface.

It has a wide range of applications, from small diameters to a few millimeters to a few meters, from high vacuum to high pressure.

The stainless steel two-piece ball valve can be divided into straight-through type, three-way type and right-angle type according to its channel position.

The latter two kinds of ball valves are used to distribute the medium and change the flow direction of the medium.

Stainless steel two-piece ball valve Investment Casting for body and Cap

Internal Entry Blow-Out Proof Stem

Pressure Rating: 2000PSI (PN125)

Thread End: ANSI B2.1, BS21, ISO7/1

Working Temperature: -25℃+180℃

Material: CF8M, CF8, CF3M, WCB

Inspection Testing: API 598, EN 12266

Company Contact:

• Posted By: Cangzhou Cencho Tech Solution Co., Ltd.

• Phone: +86 3172206768

• Address: No. 1, Shengyang Road, High Tech Development Zone, Cangzhou , Hebei , China

• Email:

• Website: https://www.ss-castings.com/

• Business Description: Cangzhou Cencho Tech Solution co.,Ltd was established in 1997 - After 20 years of hard work, the company integrates design, development, manufacturing, processing and sales services.

  It specializes in the production of valves, pipe fittings and customized castings.

  It has a professional design center and Technical service center, monthly production capacity ≥100tons, monthly capacity ≥200tons.

  Fully automatic waxing machine It can realize 4000 pieces of wax molds per day for each automatic waxing machine, which is 3 times of the production efficiency of traditional manual waxing machine.

  The fully automatic making shell machine can process 800 trees per day, twice as much as manual working;

  The company has a fast drying room that can complete the shelling in 3-5 days and shorten the drying time of the shell for two days;

  40 sets CNC machine lathe and 2 milling machines make Cencho has powerful machining capabilities

  Cangzhou Cencho Tech Solution co.,Ltd is equipped with professional material testing equipment (spectrometer).

  The material will be tested before casting.

  The finished product will be tested twice to achieve the perfect material quality and fully meet the material standards required by customers.

  The company has a complete QA system, the professional QC team will test the various dimensions and surface treatment of the blank, casting defects, etc., and support professional cutting and grinding personnel.

  Professional pressure testing equipment has good control over water pressure and air pressure detection during product inspection.

  The company has a complete export system, through the official website, Alibaba, Facebook, LinkedIn, YouTube and other channels, constitutes a strong sales network.

  Today, our products have been sold to 17 countries and regions around the world (Sweden, Germany, Italy, USA, Canada, Brazil, Venezuela, Australia, South Korea, Croatia, Thailand, Pakistan, Latvia, Nigeria, Algeria, Japan, India), It has been widely used in 14 industries (chemical, petrochemical, petroleum, paper, mining, electric power, liquefied petroleum gas, food, pharmaceutical, water supply and drainage, municipal, mechanical equipment, electronics industry, urban construction, etc.

  ), forming a good user reputation.
