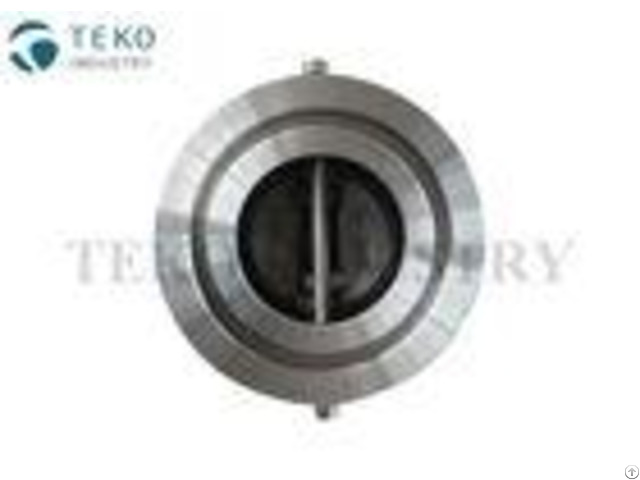

Stainless Steel Wafer Check Valve Vertical And Horizontal Installation Between Flanges - China
price: check with company for price
Stainless Steel Body Vertical And Horizontal Installation Wafer Check Valve Between Flanges Our Wafer Pattern Dual Plate Check Valve offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems.
An economical, space saving spring loaded dual plate valve with Stainless Steel body and Viton seal.
Installed either vertically (upwards only) or horizontally.
Key features: # Available in sizes: 2" to 24" # Temperature range: -10C to 120C # Pressure rating: PN16 # Low cracking pressure # Space saving design # Both Horizontal and Vertical(Upsream only) installation are workable.
Cracking Pressure (psi) - - - - Cracking Pressure (psi) | Valve Size | Installation Orientation | Horizontal Pipeline | Vertical Pipeline | Valve plates open sideways | Valve plage open upwards | 2" to 14" | 0.15 | 0.30 | 16"to 24" | 0.15 | 0.45 | 30" to 48" | 0.15 | 0.60 | - - - -
Company Contact:
- Posted By: TEKO Industry Co., Limited
- Phone: 86-20-84646289
- Address: Xinqiao Industrial Zone, Shiji County, Shiqiao, Panyu Disctrict, Guangzhou, China, Guangzhou , Guangdong , China
- Email:
Published date: April 25, 2018
- Business Description: TEKO Industry Co., Limited, established in 2010, is a rapidly growing industry products manufacturer in China.
Throughout 8 years of development, we have been now becoming the major valve supply in industries of petroleum, chemical plant, power station, mining, metallurgy, waste water treatment, etc.
