Organic Membrane Module - China

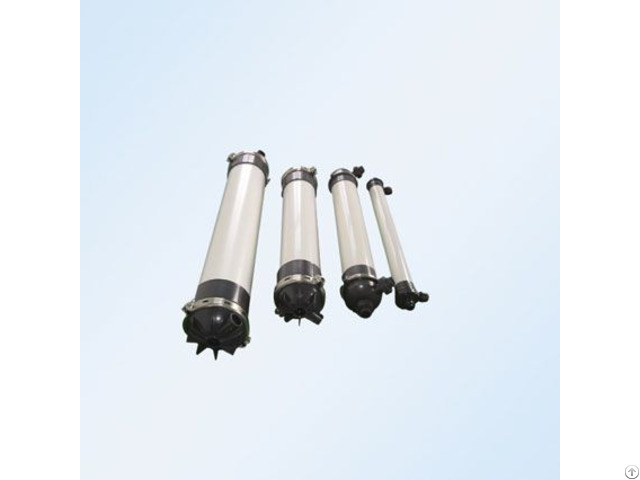

Organic membrane module is a complete unit composed of the membranes, housing, feed inlet, concentrate outlet, and permeate outlet.

Organic membrane modules may contain different membrane configurations, including spiral and hollow fiber membrane.

OVER VIEW OF ORGANIC MEMBRANE MODULE

Organic membrane module is a complete unit composed of the membranes, housing, feed inlet, concentrate outlet, and permeate outlet.

Organic membrane modules may contain different membrane configurations, including spiral and hollow fiber membrane.

The tube housing is designed to receive 2 to 5 membranes per tube housing.

Also, it is designed to resist extreme pH, pressure, and temperature.

Reverse osmosis and nanofiltration membrane modules are generally made of FRP or stainless steel because of the large pressures.

Ultrafiltration membrane modules generally use UPVC or ABS, because the operating pressure of ultrafiltration is generally low (generally less than 0.3Mpa).

In addition to the membrane modules, UPVC pipes can be used to make small ion-exchange beds in water treatment equipment.

For example, it is used in titanium dioxide water treatment.

The membrane module is divided into an eight-inch membrane module (8040) and a four-inch membrane module (4040).

The membrane module has a core, two cores, three cores.

seven cores.

(8040, 8080, 80120 - 80280).

In addition, we can supply accessories such as: Tube housing accessories including end-plates, spacers, and inter-connectors

Membrane extractors to extract the membrane easily and safely FEATURES OF ORGANIC MEMBRANE MODULE

Reliable retention effect

Lower flux attenuation

High mechanical strength

Without harsh feed inlet limitation

Chemical cleaning, oxidation resistance

Strong anti-pollution ability

Better operation and cleaning process

LOW END FACE FEATURES

6 Pcs sectors,, respectively arrange two diversion tubes

Diversion tubes consist of water, air inlet channel

Uniform distribution of flow channels and membrane filaments in the same direction is conducive to reducing the impact of water flow to membrane filaments

Water flow and air flow along the membrane surface to enhance the overall component fouling resistance

ADVANTAGE OF ORGANIC MEMBRANE MODULE

Bigger membrane area Reduce the load per unit area

Air scrub and other physical cleaning

Remove turbidity

Company Contact:

• Posted By: Jiangsu Jiuwu Hi-tech Co., LTD

• Phone: 02558109595

• Address: No. 9 Yuansi Road, Pukou, Nanjing, Jiangsu, China 211808, Nanjing , jiangsu , China

• Email:

• Website: https://www.jiuwumembrane.com/

• Business Description: JIANGSU JIUWU HI-TECH CO., LTD has become the biggest ceramic membrane producer and system integration provider in the world since 1997.

  JIUWU HI-TECH has advance R&D center, many material scientists, experienced engineers and workers and more than one hundred of pilot.

  JIUWU HI-TECH provides total solution from trial, design , manufacturing, installation, commissioning, after-sale service to membrane replacement.

  JIUWU HI-TECH cooperates with OEM.

  JIUWU ceramic membrane element has an asymmetrical structure consisting of three layers, which are filtering layer, an intermediate layer, and the support layer.

  The pressure drop of such asymmetrical structure is lower than that of the symmetrical structure of another membrane, which means that the ceramic membrane element has a better recovery.

  JIUWU ceramic membrane element adopts dynamic cross-flow filtration mode which is completely different from dead-end filtration and filter-cake filtration.

  The feed flows into the membrane channel at a cross flow velocity.

  Under a certain pressure (Trans-Membrane Pressure), small molecular substances or clean liquids pass through the membrane layer vertically to permeation, macro molecular substances or solids are trapped by the membrane, thereby achieving the purpose of clarification, concentration and purification.

  Cross-flow filtration mode can achieve stable fluxes.

  JIUWU ceramic membrane element is an ideal choice for high value-added products and demanding selective separations from solid-liquid fluid streams.

  The compact multi-channel geometry and high permeability are optimized for bulk processing applications.

  JIUWU ceramic membrane element has a wide range of application-specific of geometries with pore size from 2nm to 1200nm, making it ideal for micro filtration ultra filtration, nanofiltration.

  JIUWU ceramic membrane element is available in sizes ranging from small laboratory devices through individual modules of 0.1 square meters surface area, ensuring the ability to evaluate and scale up processes to any size.
