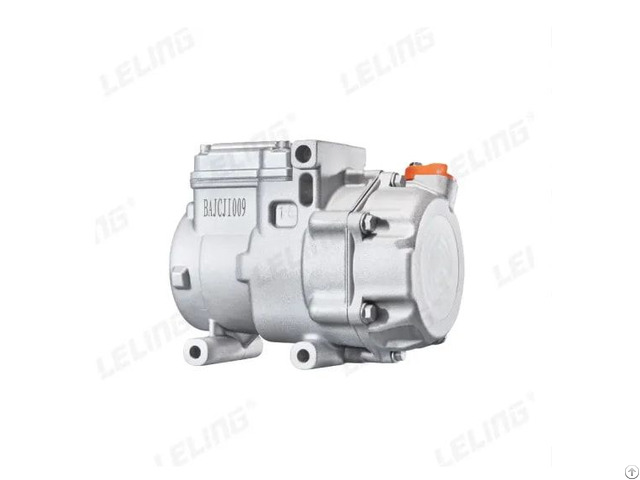

Dc Variable Frequency Electric Scroll Compressor - China

The electric scroll compressor is mainly composed of moving scroll plate, stationary scroll plate, driving motor, anti-rotation mechanism, one-way valve and other components.

During operation, gaseous refrigerant enters the crescent-shaped compression chamber on the periphery of the stationary scroll plate from the suction port.

As the moving scroll plate rotates, the volume of the compression chamber gradually decreases, the refrigerant is continuously compressed, and its pressure and temperature rise.

Eventually, it is discharged from the exhaust port at the center of the stationary scroll plate, enters the condenser of the air-conditioning system, condenses into liquid refrigerant after heat dissipation, then passes through the expansion valve for throttling and pressure reduction, and enters the evaporator to absorb heat through evaporation, thus realizing the refrigeration cycle.

In the heating mode, the flow direction of the refrigerant is changed through the four-way reversing valve to achieve heating.

The electric scroll compressor has the following major advantages:

• Drive and Structure: It is directly driven by a motor, has a scroll structure, is small in size and light in weight, and is convenient for installation and layout.

• Operating Performance: It has a fast response speed, precise temperature control, low operating noise, good refrigeration and heating effects, and is not limited by the engine speed.

• Energy Efficiency Performance: It can automatically adjust the power output, with significant energy-saving effects, which can improve the energy utilization rate.

• Maintenance: It has few parts, low wear, long service life, and low maintenance cost, and there is no need to frequently replace wearing parts.

• System Compatibility: It is highly integrated with the electronic control system, enabling intelligent control and coordinated work.

Currently, our company can provide air-conditioning compressors with displacements such as 14CC, 18CC, 28CC, 34CC, and 50CC, accurately meeting the refrigeration requirements of different scales and working conditions.

In terms of voltage adaptation range, it covers diverse options such as 12V, 24V, 48V, 96V, 144V, 312V, and 540V.

Currently, it can support a maximum voltage of 800V, being able to perfectly match various power system architectures.

Its control modes include advanced forms such as gear, PWM (Pulse Width Modulation), and CAN (Controller Area Network), and the refrigeration capacity output range is wide, ranging from 0.8kW to 15kW.

Whether it is the efficient operation of small refrigeration units or the strong refrigeration demands of large refrigeration systems, it can handle them with ease, stably exerting excellent performance and presenting reliable and customized refrigeration solutions to customers.

Company Contact:

• Posted By: SHANGHAI LELING NEW ENERGY TECHNOLOGY CO.,LTD

• Phone: 021-59963595

• Address: No.925 Yecheng Road, Jiading Industrial Zone, Shanghai , Shanghai , China

• Email:

• Website: https://www.llautocool.com/

• Business Description: Shanghai LeLing New Energy Technology Co., Ltd. is a company specializing in the research and development, production, and sales of electric scroll compressors.

  Based on market demands, the company has invested a huge amount of capital to meticulously develop electric scroll compressors, which possess the following advantages:

  Our compressor product line is rich and diverse.

  It is precisely classified into multiple series according to displacement, such as 14CC, 18CC, 28CC, 34CC, 50CC, etc., which can accurately meet the cooling requirements of different scales and working conditions.

  In terms of voltage adaptation, it has a wide range of options including 12V, 24V, 48V, 96V, 144V, 312V, 540V, etc.

  Moreover, we have successfully broken through the technical bottleneck and can currently support a maximum voltage of 800V, demonstrating excellent compatibility and forward-looking capabilities and being able to fully match various power system architectures.

  Its control methods cover advanced modes such as gear, PWM, CAN, etc., providing users with a flexible, precise, and intelligent control experience.

  The cooling capacity output range is wide, ranging from 0.8kW to 15kW.

  Whether it is the efficient operation of a small cooling unit or the strong cooling demand of a large cooling system, it can handle it with ease, ensuring stable and excellent performance in diverse application scenarios and providing customers with reliable and customized cooling solutions.
