Custom Right Angle Prism, BK7 Glass Right Angle Prism, UV Fused Silica Right Angle Prism Manufacturer China

PARAMETER:

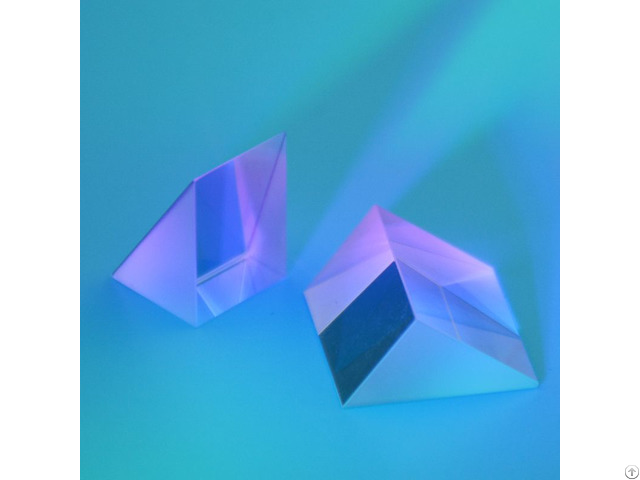

Right angle prisms are extremely versatile optical components, commonly used as individual prisms and components of optical assemblies.

A beam of light entering the leg of a right angle prism will deviate by a nominal value of 90°, while precise rotation of the prism controls beam alignment.

When light enters the hypotenuse of the prism, it is commonly called a porro prism.

In this configuration, a light beam will undergo 180° deviation that is invariant in the azimuthal axis, while precise adjustment of the prism controls beam elevation.

Specification

Material BK7 glass / UV Fused silica

Dimension 3mm~200mm

Dimension tolerance ±0.1mm~±0.05mm

Surface quality 60/40, 40/20, 20/10

Surface flatness λ/20 – λ/4

Angle tolerance <30arc sec.

~5arc min

Bevel <0.25mm×45°

Coating As per customized request Size List

TYPE No.

Dimension

RAP-5 5.0mm×5.0mm

RAP-10 10.0mm×10.0mm

RAP-12.5 12.5mm×12.5mm

RAP-15 15.0mm×15.0mm

RAP-20 20.0mm×20.0mm

RAP-25 25.0mm×25.0mm

RAP-50 50.0mm×50.0mm Other customized sizes can be met.

Company Contact:

• Posted By: ChangChun BRD Optical co., Ltd

• Phone: 86 431 81884163

• Address: No.399 Bo Cai Road, High-Tech Industrial Development Area, Changchun, Jilin, China 130012, Changchun , Jilin , China

• Email:

• Website: https://www.ecoptik.net

• Business Description: Changchun BRD Optical Co., Ltd was founded in 2000, and is located in the city of Changchun-the optic base of China with a beautiful view and profound optical culture.

  We have state-of-the-art, modern technology machines for manufacturing and inspecting all kinds of precision optics.

  Our company occupies an area of 1, 500 square meters, supported by 82 workers, including three technical engineers and two dedicated optical engineers.

  In the aspect of technology, we benefit from the backbone of Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences and Changchun University of Science and Technology.

  We also usually make technical exchange with each other.

  Referring to the manufacture equipment and checking equipment of products, most of them are adopted from abroad including coating machine, sphericity interferometer, optical spherometer and others.

  It can detect the optical components exactly and increase the production levels.

  We also comply with a standard of DIN, MIL, ISO surface quality standards in the aspect of production layout and production design.

  For many years, we were focusing on manufacturing and selling precision optics with high quality.

  We mainly deal with optical lenses, prisms, windows, filters, cylindrical lens, aspherical lens, mirrors, quartz glass, ZnSe, CaF2 and others.
