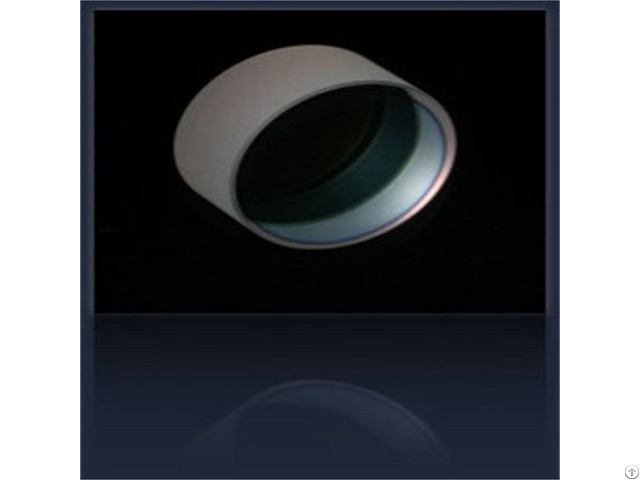

  • Optical Laser Mirrors Hr Partial Reflection Gold Silver Coated - China

    price: contact company for price

    Photonchina supplies a wide variety of mirrors, ranging from laser line mirrors, harmonic separator mirrors, high reflection (HR) mirrors, partial reflection mirrors and metallic coated mirrors.

    Wide selection of rectangular, round, elliptical, or custom shape mirrors with flat, spherical concave or convex and cylindrical surfaces can all be produced.

    HR laser line Mirrors (HR Mirrors)

    HR laser line mirrors (HR) provide optimized performance at certain wavelength and certain angle of incidence (AOI).

    Mirror consists of substrate and multilayer coating stacks which help to achieve very high reflectivity at specific laser line wavelength at any designed angle of incidence.

    Laser line HR coatings are used for external beam manipulation applications where even slight losses may be intolerable.

    Coatings are provided by electron beam evaporation with/without ion assistance coating technique.

    HR Broad Band Mirrors (BBHR Mirrors) HR broad band mirrors (BBHR) provide high reflectance for a broad spectrum.

    These multilayer coatings offers high reflectivity for broad spectrum.

    Therefore, it is the ideal for a wide range of multi-wavelength laser or white light applications.

    Coatings are provided by Ion Beam Sputtering (IBS) or Electron beam evaporation with/without Ion assistance coating techniques.

    HR dielectric coatings are available in the range of 0.19 - 20 μm.

    Metallic Coated Mirrors(MC Mirrors)

    Metallic mirrors and partial reflectors Photonchina has long been offering gold, silver, aluminum, chrome and copper metallic high reflection and partial reflection coated mirrors for customers home and abroad.

    Photonchina metallic coated mirrors features:  Protected Gold provides excellent, broadband infrared high reflectance

     Protected Silver provides higher reflectance than aluminum throughout the visible and near IR

     Protected Aluminum is economical solution for VIS applications

     UV enhanced Aluminum provides good reflectance over a wide range and are mainly used in UV applications.

    Metallic Coated Mirrors Capabilities Attribute Standard

    Substrate material BK7, Fused Silica

    Diameter tolerance +0.0, -0.1mm

    Clear aperture >90%

    Surface quality 40-20 scratch and dig

    Surface irregularity λ/4 per

    Parallelism for plano-flat of mirror <1 arc minute

    Coating: R>96.0%, Protected Gold

    R>96.0%, Protected Silver

    R>85.0%, Protected Aluminum


    Company Contact:


    • Phone: 13107695427

    • Address: 15 Binzhou Road, Jinshan Industrial Park,, Fuzhou , Fujian , China

    • Email: Email


    Published date: August 10, 2021

    • Business Description: Quartz Waveplate

      Photonchina is a leading manufacturer of quartz waveplate products in the world.

      Our complete quartz waveplate range includes true zero order, zero order, multiple order, with the retardation of half, quarter or octadic wave.

      Special types like achromatic and dual wavelength waveplate, either in circular or quadratic shape, are all available.

      Thickness of true zero order waveplate T=0.027mm, is the latest accuracy level reached, thanks to our special production technique and skilled technicians.

      Crystal Polarizer

      Giant company and small start-up have all chosen our polarizer products for their applications in laser, telecommunication,surveyi ng or others.

      Glan laser polarizer, Glan taylor polarizer, Wollaston polarizer, Glan thomson polarizer etc, made of BBO, YVO4, Calcite crystal, are produced by the team with more than ten years of experience.

      High quality crystal materials and excellent optical coating performance have contributed to customer's approval worldwide.

      Photonchina offers polarizer with or without mount.

      Lenses

      You may find various types of lenses from Spherical lenses, Cylindrical lenses to Acylindrical lenses here, produced by materials of BK7, Fused Silica as well as Calcium Fluoride, Sapphire, Silicon and Germanium etc.

      With the rich experience in manufacturing lenses and the help of high-end of optical coating machine, Photonchina has supplied lenses with mass quantity or custom small number to customers worldwide for more than a decade.

      Standard diameters have been 0.5mm-160mm with various radii and types upon customer request.

      Micro lens has now reached 0.5mm diameter, one of the smallest lens ever produced.

      Prisms

      Photonc hina supplies an array of high precision prisms.

      These prism products have been manufactured with stringent inspection for angle, surface quality, flatness, transmitted wavefront, dimension, clear aperture and optical coating performance.

      Our current capabilities include Roof prism,Right angle prism, Penta prism, Rhomboid prism, Dove prism,Wedge prism, Anarmophic prism,Pellin-Broca prism etc.

      Substrates can be chosen from optical glass BK7,N-SF11,Fused silica to crystals like Calcite, BBO, LBO etc.
