Pvc Flat Hose - China

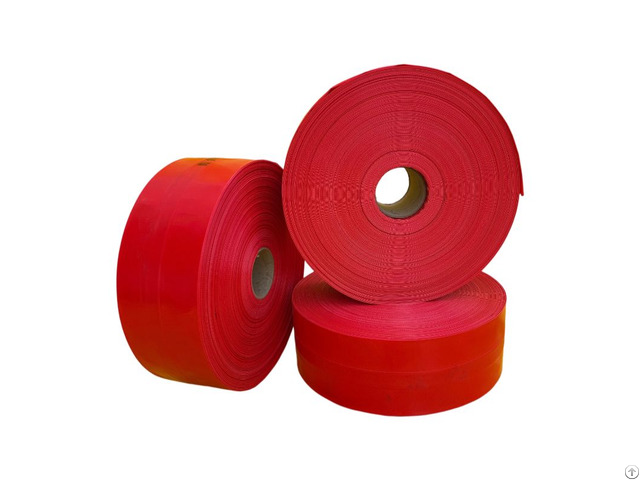

PVC Flat Hose

Jinshida supplies PVC coated layflat hose for agricultural irrigation, farm water delivery, orchard water supply, aquaculture and other confirmed water-transfer applications.

The hose is made with a high-strength polyester woven base fabric and double-sided PVC knife coating, creating a flexible water-delivery line that lies flat when empty and expands when pressurized.

Available constructions cover approximately 400–900 g/m², with multiple diameters, standard 100-meter rolls and several color options.

The appropriate diameter, construction weight and pressure grade should be selected according to your pump outlet, required flow, transfer distance, elevation difference and installation conditions.

This agricultural PVC layflat hose is suitable for irrigation distributors, project contractors, farming cooperatives, large farms and private-label buyers.

Custom diameter, length, color, product printing and packaging can be discussed through our irrigation hose OEM service.

PVC Coated Layflat Hose at a Glance

Product Type PVC coated layflat hose / PVC knife-coated fabric water hose

Base Fabric High-strength polyester filament woven fabric

Coating Double-sided PVC knife coating

Diameter Range Current listed options cover approximately 1–10 inches.

Selected constructions also include intermediate sizes; confirm exact availability before ordering.

Construction Weight Approximately 400–900 g/m², depending on product series

Standard Roll Length 100 meters; custom lengths can be discussed

Available Colors Yellow, red, green, blue, black and confirmed custom colors

Working Pressure Confirmed according to hose diameter, construction and intended operating conditions

Burst Pressure Test data should be confirmed for the selected specification before ordering

Typical Applications Farmland irrigation, orchard supply, aquaculture water transfer and long-distance agricultural water delivery

Customization Diameter, roll length, construction weight, color, printing and packaging

PVC Coated Fabric Hose Construction

The performance of a PVC coated layflat hose depends on its complete structure rather than color or weight alone.

The Jinshida hose uses a woven polyester reinforcement with PVC coating applied to both sides of the fabric.

Polyester Woven Reinforcement

The woven fabric provides the main structural reinforcement.

Fabric specification, yarn strength and weave density influence tensile performance, dimensional stability and pressure capability.

Double-Sided PVC Coating

PVC coating forms the inner water-contact surface and the outer protective surface.

A consistent coating helps maintain flexibility, surface integrity and water containment under the confirmed operating pressure.

Flat and Rollable Structure

When water pressure is removed, the hose can be flattened and rolled for transportation or seasonal storage.

This structure is useful where rigid pipelines are difficult to transport, install or recover after irrigation.

Formed Hose Seam

Seam construction is an important selection and inspection point for a PVC-coated fabric hose.

The final seam method, seam width and applicable pressure level should be confirmed for the selected product specification.

Key Features of the PVC Coated Layflat Hose

Flexible Handling for Field Installation

The hose can be rolled, carried and laid along fields, orchards and uneven agricultural terrain.

Its flat form reduces storage space compared with rigid water-delivery pipe.

Multiple Construction Grades

Different fabric weights and diameters are available for different handling frequencies and operating conditions.

A heavier construction can provide greater structural reinforcement, but the final working pressure also depends on diameter, fabric specification, coating and seam design.

Smooth Water Passage

The coated inner surface supports water flow through the hose.

Actual flow and pressure loss depend on the hose diameter, total length, pump performance, fittings, elevation and number of branches in the irrigation system.

Convenient Seasonal Storage

After the water is drained, the hose can be cleaned, dried and rolled for storage.

Correct handling helps reduce damage caused by sharp objects, twisting, prolonged pressure or unsuitable storage conditions.

Custom Specifications for Bulk Buyers

Jinshida supports custom PVC layflat hose orders for distributors, contractors and private-label brands.

Available customization includes product dimensions, roll length, color, logo printing, specification marking and export packaging.

Current PVC Coated Layflat Hose Series

The following series are retained from the existing product page.

Color is useful for product identification, but it should not be treated as the only indicator of pressure or durability.

Select each series according to its construction weight, diameter, confirmed pressure rating and intended application.
