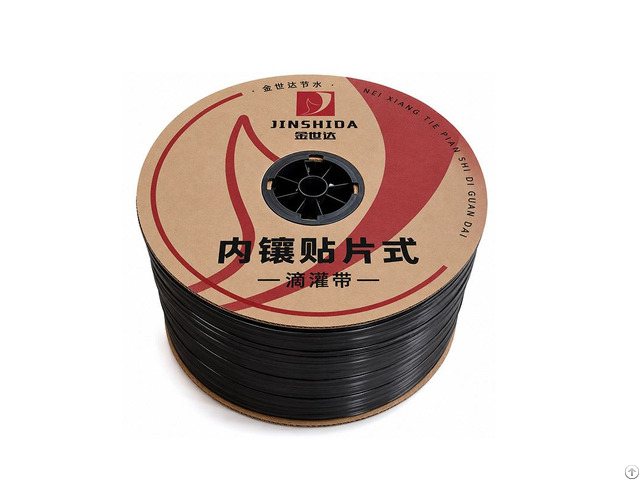

Inlaid Patch Drip Irrigation Tape

Flat Emitter Drip Tape for Agricultural Irrigation

Jinshida supplies flat emitter drip tape for open-field vegetables, greenhouse crops, melons, strawberries, flowers and Suitable for vegetables, melons, strawberries, flowers and other seasonal row crops.

Flat emitters are integrated into the PE drip irrigation tape to deliver water at fixed intervals along each planting row.

The current product range includes 0.20 mm wall thickness, 10 cm, 15 cm, 20 cm and 25 cm emitter spacing, nominal emitter flow options of 1.38 L/h, 3 L/h and 4 L/h, and 1000 m or 2000 m roll lengths.

Single-outlet and double-outlet configurations are available according to the confirmed product specification.

This agricultural drip tape is intended for low-pressure irrigation systems equipped with suitable filtration, pressure regulation, mainlines, connectors and flushing components.

Select the diameter, emitter flow, working pressure, filtration level and lateral length according to your field layout and irrigation requirements.

Irrigation distributors, project contractors, farming cooperatives and private-label buyers can also request custom spacing, flow configurations, roll labels and export packaging through our custom drip tape OEM service.

Flat Emitter Drip Tape at a Glance

Product Type Flat emitter drip tape / PE drip irrigation tape

Emitter Structure Integrated flat emitter; detailed flow-path structure should be confirmed by model

Material Polyethylene-based drip irrigation tape

Wall Thickness 0.20 mm

Emitter Spacing 10 cm, 15 cm, 20 cm and 25 cm

Nominal Emitter Flow 1.38 L/h, 3 L/h and 4 L/h

Flow Test Pressure Provided with the confirmed product specification

Outlet Options Single outlet and double outlet

Roll Length 1000 m and 2000 m

Nominal Diameter Confirm the available diameter and fitting size before ordering

Working Pressure Confirmed according to the selected diameter, wall thickness and emitter model

Maximum Lateral Length Calculated according to spacing, flow rate, inlet pressure, diameter and field slope

Recommended Filtration Confirmed according to emitter flow-path dimensions and water quality

Typical Installation Surface or under-mulch installation, subject to the confirmed application

Customization Spacing, flow configuration, roll length, label, logo and packaging

What Is Flat Emitter Drip Tape?

Flat emitter drip tape is a thin-wall PE irrigation lateral with flat emitters installed at regular intervals inside the tape.

Water enters the emitter, passes through its internal flow path and exits near the crop root zone through the outlet formed in the tape wall.

When the system is not pressurized, the tape remains flat and can be supplied in long rolls.

During irrigation, water pressure opens the tape and distributes water through each emitter.

Long roll lengths support efficient manual or mechanical installation across crop rows.

Flat emitter drip tape is different from a conventional thick-wall dripline.

It is normally selected where buyers prioritize long roll lengths, close emitter spacing, low-pressure operation and seasonal crop-row installation.

Integrated Flat Emitter

The emitter is installed inside the tape rather than attached externally.

Emitter structure and hydraulic performance vary by model.

Detailed flow-path and pressure data are available for specification confirmation.

Fixed Emitter Spacing

Emitters are positioned at regular intervals during production.

Available spacing options of 10 cm, 15 cm, 20 cm and 25 cm allow buyers to match the tape to crop layout, soil wetting characteristics and required water application per meter.

Long-Roll PE Tape

Standard roll lengths of 1000 m and 2000 m support long planting rows and reduce the number of roll changes during field installation.

The final roll length should also account for transport, handling equipment and installation method.
