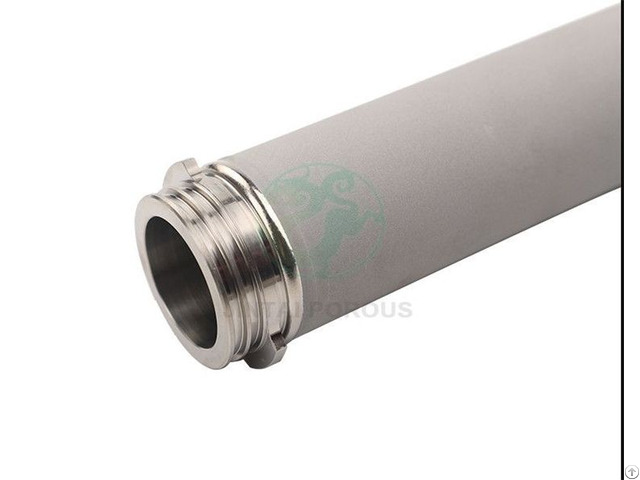

Double Layer Filter - China

Porous Metal Filter Sintered Metal Filters Suppliers The double-layer filter element is the patent product of Jintai Company.

By controlling different raw materials and adopting a one-time molding process, the gradient distribution of the pore size can be achieved.

The double-layer structure plays a role of support and filtration at the same time, and the gradient-distributed pore structure can achieve a good separation effect with lower energy consumption.

Compared with the rolled filter element, the double-layer filter element has a more complete structure, does not require welding, and is more corrosion resistant.

It is the first choice to replace the rolled filter element and is also a new solution in the field of cross-flow filtration.

Features of Double-Layer Filter

Interchanged internal and external precision

Better permeability

Higher economy

Pore size gradient distribution Specifications

Material selection Stainless steel: 316L

Other materials required by the customer

Filtration Grade 0.5um 1um 3um 5um 10um

Other grade required by the customer

Data & Specifications Length: The longest seamless tube is 1000mm

Diameter: 40-75mm

Other specifications and sizes required by customers

Connection Thread, flange, flat pressing, quick connection, etc.

Other ways required by customers Typical Application

Polymer melt filtration

Cleaning and filtering of chemical raw materials and intermediates

High temperature flue gas filtration

Security filtration in the water treatment system

Filtration and recovery of catalysts in chemical, pharmaceutical and other fields

Company Contact:

• Posted By: Shijiazhuang Jintai Purification Equipment Co.,Ltd.

• Phone: 86031182580013

• Address: No.69 Tiangui Street, High-Tech zone, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.jintaiporous.com

• Business Description: Shijiazhuang Jintai Purification Equipment Co., Ltd. was founded in 1994 (reformed from a state-owned enterprise to a private limited liability company in 2004), located at No.

  69, Tiangui Street, High-Tech Zone, Shijiazhuang, Hebei Province.

  The company has been committed to the development of metal porous materials and related technologies and applications.

  As early as more than 20 years ago, Jintai began to focus on the development and production of metal porous powder sintered filter elements.

  It has 15 invention patents and utility model patents.

  It has been a high-tech enterprise and has passed ISO9001 quality management system certification.

  After more than 20 years of technical accumulation, Jintai can now provide customers with a variety of product materials and specifications to meet customer needs.

  The company's business covers all provinces in China, and some products are exported to Germany, Italy, Spain, India, Taiwan and other places.

  Some large domestic companies have designated the company's products.

  The company's products mainly include titanium filter, stainless steel filter, sparger, filter, filter device and system, sheet and disc, saucer-shaped filter disc, aeration ring and so on.

  Products are widely used in medicine, metallurgy, petroleum and petrochemical, fine chemicals, food and beverage, air purification, electronics industry, textile industry, water treatment and other fields.
