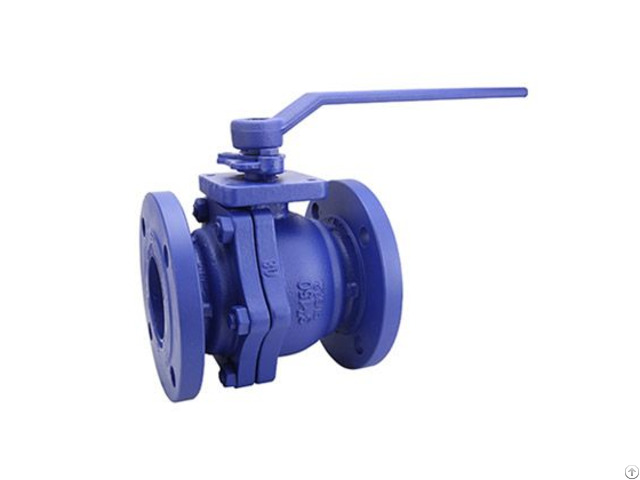

Cast Iron Ball Valve Ansi - China

Size: 1/2”- 10”.

Pressure Rating: CLASS 150

Body Material: Cast Iron(ASTM A126-B) and Ductile Iron(ASTM A536)

Operation: Lever, Worm Gear, Electrical, Pneumatic, Hydraulic

Design: ANSI B16.1

Face to Face: ANSI B16.10

Test: API 598

Features:

Leflow’s ANSI Cast Iron Ball valve is 2pc type, End can be flange and thread, 125LBS and 150LBS rating.

ASTM A126-B body ball valves can be used in many industries like water distribution networks, food and pharmaceutical plants, water treatment, power plants and so on.

1 - The stainless steel ball & stem and sealing mechanism ensures the valve for long life usage.

2 - It is advised to be used either at fully open or fully closed position.

3 - The Cast Iron ball valves open/close position can be easily observed from the position of handlever easily.

4 - PTFE sealing provides long service life with zero leakage rates.

5 - The valves are designed for bidirectional usage.

6 - Through its full bore design, pressure loss is almost at zero point.

7 - By adding an ISO top flange, the valve operation can be maintained by gearbox, pneumatical or electrical actuator.

8 - The valves are Anti-static and blowout-proof designed.

9 - Extension Stem is also optional.
