5c Collet Chuck For Lathe - China

price: contact company for price

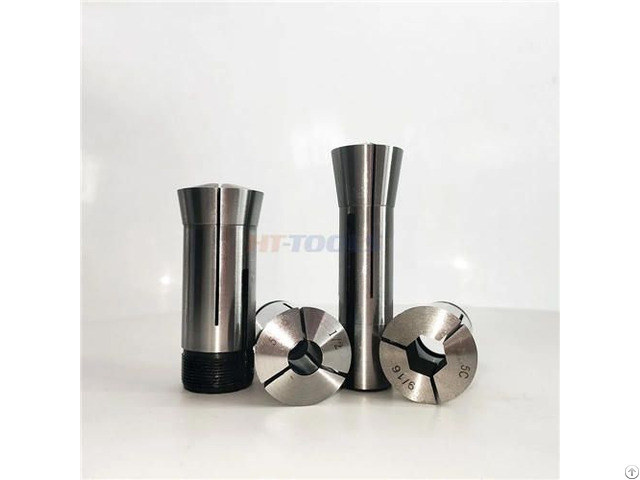

5c Collet Chuck For Lathe

Products Photos Catalog Collet Chuck Lathe Photos Catalog

Material: 65Mn

Hardness: clamping part HRC55-60 elastic part HRC40-45

This unit is applicable to all sorts of lathes, which spindle taper hole is 5C, such as automatic lathes, CNC lathes etc.

Accuracy: 0.015mm

Type: Round hole, Square hole, Hex hole, Mini order quantity: 10pcs

Package: Paper box and plastic box

Order No.

Type Clamping range Wt(kg) Price mm ln 5C-01-d Round 1-28 1/32-1-1/8 0.24 $3.80

5C-02-S Square 3-19 1/8-3/4 0.24 $10.00

5C-03-H Hex 3-22 1/8-7/8 0.24 $10.00


Company Contact:


  • Phone: +86 534 4251888

  • Address: East Area of Economic Development Area, Pingyuan County, Shandong Province, China

  • Email: Email


Published date: January 28, 2026

  • Business Description: Pingyuan Haotian Machinery Co., Ltd. was established in July 2013, the factory site is located in China's largest machine tool accessories production and processing industrial base, and has now developed into an area of 8900 square meters, with more than 120 employees and technical personnel.

    The company specializes in researching, producing and developing various types of spring collets , drill chucks, CNC tool holders, retention knobs, ER nuts, wrenches, machine Vises, parallel block and other products, excellent quality, complete specifications, won the trust of customers at home and abroad.

    Our Products:

    - 5c Collet Chuck For Lathe

    - Bt Drill Chuck Arbors

    - 2flutes End Mills

    - Qm Accu Lock Precision Machine Vises

    - Din6343 Clamping Collet
