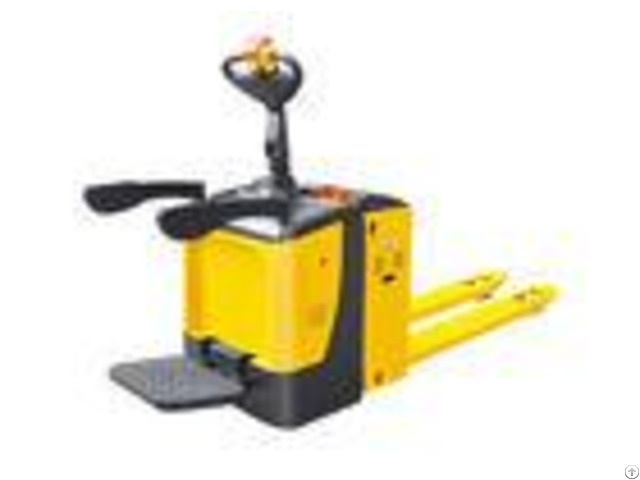

Super Light Steering Electric Pallet Truck Pu Tyres With Vertical Driving Motor - China

CBDR series electric pallet truck 2500kg with super light steering system Quick details: Model: Standing on type Electric pallet truck CBD25R Capacity: 2500kg Lowered fork height: 82mm Max.

Lifting height: 202mm Aisle width for pallets, 1000*1200 crossways: 1910/1960/2030mm Aisle width for pallets, 800*1200 lengthways: 2010/2010/2030mm Battery: 24V240AH Service weight: 750kg Advantages: # Germany FREI Tiller head.

# Emergency stop and belly button.

# BDI and hour meter.

# Casters to balance stablity.

# Industrial battery.

# Brushless AC motor.

# Vertical driving motor.

# Sideway battery change.

# Built-in charger.

# Platform with speed sensor.

Option: # Fork width and length (size).

# Load backrest.

# Built-in charger.

# Customized battery compartment.

# Entry and exist roller for empty pallets.

# EPS.

# Large compartment with battery capacity 400Ah, drive speed 10km/h.

# Keypad Ignition switch.

# Frei tiller head with one side lifting button.

# Frei tiller head with two lifting button.

- - - - SPECIFICATIONS OF 2.5T ELECTRIC PALLET TRUCK | Model | | CBD25R | Load capacity | kg | 2500 | Load center | mm | 600 | Load distance | mm | 815/865/935 | Fork height, lowered | mm | 82 | Tyre size, front | mm | 250*70 | Tyre size, rear | mm | 82*126(98) | Additional wheels (dimensions) | mm | 127*57 | Max.

lifting height | mm | 202 | Height of tiller in drive position min.

/max.

| mm | 1150/1430 | Overall length | mm | 1710/1760/1830 | Length to face of forks | mm | 610 | Overall width | mm | 775 | Fork dimensions | mm | 53/180/1100(1150/1220) | Width overall forks | mm | 520/550/650/685 | Aisle width for pallets 1000*1200 crossways | mm | 1910/1960/2030 | Aisle width for pallets 800*1200 lengthways | mm | 2010/2010/2030 | Turning radius | mm | 1550/1600/1670 | Travel speed, laden/unladen | km/h | 7/7.1 | Battery | V/Ah | 24/240 | Service weight | kg | 750 | - - - -
