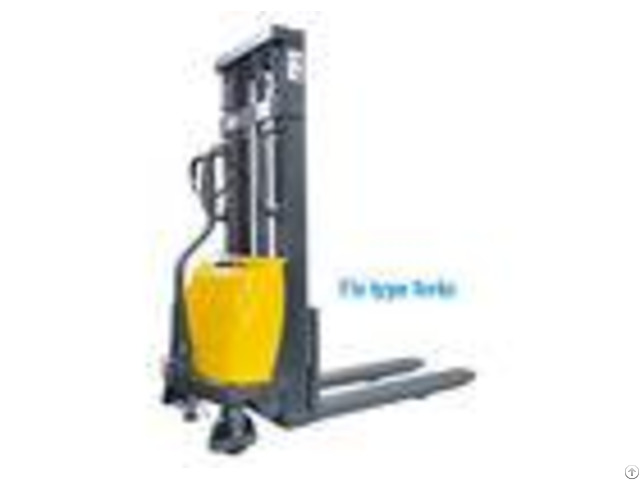

Lifting Height 2500mm Electric Pallet Stacker With Fix Type Forks Easy Operating - China

1000kg 2500mm semi electric pallet stacker with fix type forks easy operating Quick Details: Description: semi electric pallet stacker CDD10B-III Capacity: 1000kg Lifting height: 2500mm Turning radius: 1425mm Lift speed, laden/unladen: 0.08/0.1m/s Lowering speed, laden/unladen: 0.00015/0.1 2m/s Advantages: # Handle-castor chain assist steering system greatly reduces the labor intensity.

# Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.

# Over-discharge protection device greatly prolongs the battery use time.

# Overall type adjustable forks, which can be lowered to the same level of the legs.

# Chain connect side wheel and handle, easy for steering.

# Easy operating foot brake.

Option: # Straddle legs & Adjustable forks.

- - - - SPECIFICATIONS | Model | | Fixed type forks CDD10B-III | Load capacity | kg | 1000 | Load center distance | mm | 500 | Load distance, centre of drive axle to fork | mm | 802 | Tyre size, front | mm | 180*50 | Tyre size, rear | mm | 80*70 | Height, mast lowered | mm | 1840 | Max.

lifting height | mm | 2500 | Extended mast height | mm | 3060 | Overall length | mm | 1678 | Length to face of forks | mm | 608 | Overall width | mm | 800 | Fork dimensions | mm | 60/170/1070 | Width overall forks | mm | 580/695 | Aisle width for pallets 800*1200 lengthways | mm | 2267 | Turning radius | mm | 1425 | Lift speed, laden/unladen | m/s | 0.08/0.1 | Lowering speed, laden/unladen | m/s | 0.15/0.12 | Service brake | | mechanical | Battery | V/Ah | 12/120 | Service weight | kg | 460 | - - - - Chain Assist Steering System Adjustable forks Straddle legs & adjustable forks FAQ: Q: What does SEMI-ELECTRIC mean? A: It means drive by manual, lift by electric.

Q: Can you make straddle leg type? A: Yes, we can.

Straddle leg type is specially for closed pallets or some other customized size.

Q: How you pack the electric pallet stacker? A: For standard fix type, 1pc/pallet.

For straddle leg type, nude.

Conforms to EN ISO3691-1: 2012 EN1175-1: 1998/A1: 2010 EN16307-1: 2013 Based on Directive 2006/42/EC
