Rinsing Filling Capping Craft Beer Bottling Machine2 2kw Power 1200 1800 Bph - China

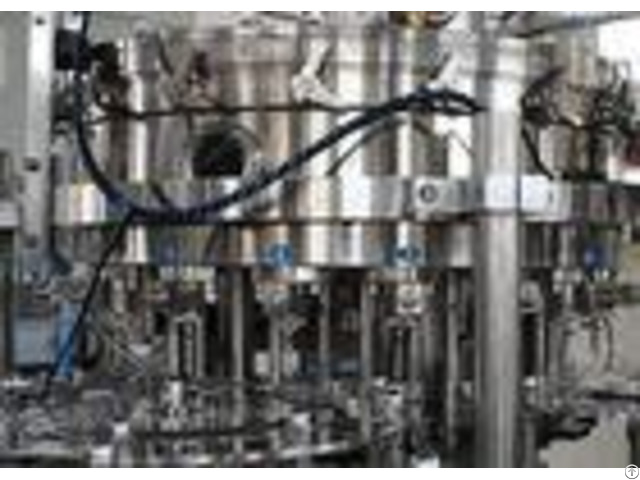

BGF 14-12-4 beer rinsing, filling, capping 3-IN-1 machine Description: This Beer Filling Machine Wash-filling-capping 3-in-1unit is used to produce stainless steel bottled beer.

The BGF Wash-filling-capping 3-in-1unit: beer Machinery can finish all the process such as washing, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Feature: 1 - Using the conveyor sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2 - Bottles transmission adopt clip bottle neck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3 - The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4 - High-speed balanced pressure flow valve filling valve, filling fast, filling accurate and no liquid spit out.

5 - Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6 - Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON or ABB.

Specification: - - - - Model | Capacity | Motor power (kw) | Dimension (L*W*H) | BGF6-6-1 | 400-600 | 2kw | 1600*1200*2200 | BGF14-12-4 | 1200-1800 | 2.2kw | 2000*1800*2200 | BGF18-18-6 | 3000-4000 | 3.7kw | 2460*1720*2650 | BGF24-24-8 | 5000-6000 | 5.5kw | 3100*2100*2650 | BGF32-32-10 | 7000-8000 | 6.5kw | 3500*2500*2650 | BGF40-40-12 | 8000-90000 | 7.5kw | 4600*3300*2650 | BGF50-50-12 | 13000-15000 | 11kw | 5300*4500*3400 | BGF60-60-15 | 18000-20000 | 15kw | 6500*4500*3400 | - - - - Details: 1 - The beer filling machine is equipped with external mechanical valve, inside which there is no spring or sealing element.

2 - With high precision me chanical filling valves, our beer filling machine stops vacuumizing when there are no bottles.

3 - The beer filling machine makes use of combined transmission by open gear and gearbox, and adopts frequency conversion stepless speed control, extending the speed modulating scope.

4 - The machine has an antomatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.

Also, our beer filling machine has high transmission efficiency, low noise and long life.

5 - With a full stainless steel magnetic hopper, the unscrambling, feeding and discharging of crown caps are all performed by magnetic force.

The caps are free from deforming, and can flow smoothly in large quantities during transmission.

6 - The capper has the function of automatic deloading, which helps lower the bottle breakage.

7 - The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.

8 - The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.
