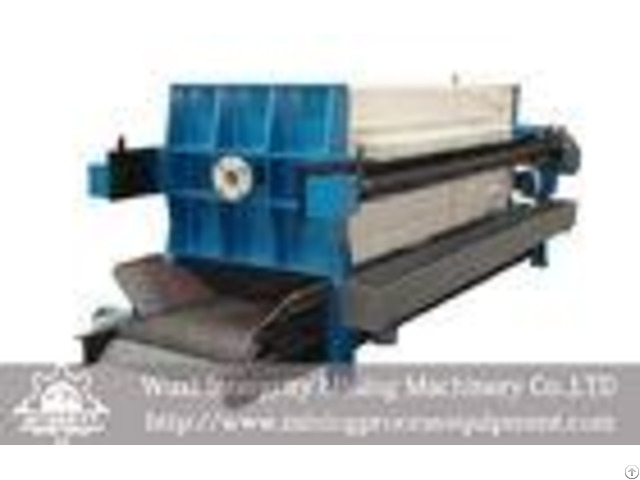

Sludge Dewatering Filter Press Automatic Solid Liquid Separation - China

Sludge Dewatering Filter Press Automatic Solid Liquid Separation Product Description The sludge dewatering automatic chamber filter press it can squeeze to dewater the material only 3-15 minutes after the membranes bulges as to the general material (slurry, sludge, etc).

As to some particular material, it can adopt two-phrase squeezing method---squeezing by low pressure firstly and then by high pressure.

Chamber filter presses use filters to separate the liquid (filtrate) from the sludge and collect the solids (filter cake) in chambers.

The slurry materials are sent to filter chamber by the pressure of feeding pump.

Then filtrating media(filter cloth) separates solid and liquid in slurry material.

When solid in slurry becomes cake shape, air is sent to diaphragm to fully squeeze the solid to reduce moisture content.

If users have high requirements about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the needs.

It is available in manual, semi-automatic, and fully automatic units incorporating PLC control and automatic cake slagging system.

You can easy to use our machine.

Sludge chamber filter press machine features Stainless or carbon steel Work temperature: 80-150 degree Acid resistance: strong Big pressing force(17-20MPa) can avoid leakage effectively.

Hydraulic station adopts ABB motor, it is steady in operation.

Auto closing and auto opening.

Polypropylene (PP) filtration plates, made by CNC lathes, which tested by 27 Mpa high pressure before delivery.

Labor saving.

Pressing plate and thrust plate are formed by carbon dioxide protection welding.

It specially apply to models with large capacity, it can ensure good filtering effect.

Optional Accessory Parts Automatic PLC Control Auto closing Auto pressure maintaining Auto filtering Auto pressure compensation Auto opening Auto plate shifting Automatic Cleaning/ Auto Varicose/ Bomb Door/ Sludge Storage Funnel Model Selection: What is the material to deal? Capacity to be filtered per hour.

Solid ratio %.

Particle size.

Material temperature.

PH value.

Power voltage.

) Application Metals, metal finishing, minerals Petrochemical and oily slurries Industrial laundries Tanneries and textile waste Paint sludge Filter backwash Effluent treatment plants Municipal water treatment plant sludge aluminum and lime Municipal waste water treatment plant sludge-activated Chemical solid-liquid separation processes De-watering and washing of pigments and dyestuffs Environmental Remediation Pre-filtration & Clarification Corrosive, acidic, alkaline slurry filtration Functions: Automatic Filter Press machine can squeeze the filter cakes after the material feeding process, which improves the dewatering efficiency of the machine, increases dryness factor of filter cake, decreases pollution and reduces labor force required.

The drying techniques sometimes can be omitted.

The moisture content of filter cakes could be decreased further more if air blowing procedure is carried out before and after the squeezing process.

- - - -

500 mm Hydraulic press filter machine | item | Description | model | XMY800-30U | Filter area | 30-60 m2 | Plate size | 800 mm | Cake thickness | 30 mm | Plate number | 29-59 pcs | Chamber vol.

| 480-960 L | Filter pressure | 0.5-1.6 mpa | Pump pressure | 25 mpa | stroke | 450 mm | dimension | 5000*1300*1600 mm3 | weight | 3000 kg | - - - - Thank you for your great attention and I am looking foward to building a long-term and mutual beneficial business relationship between us!
