Roads Drainage Grating - China

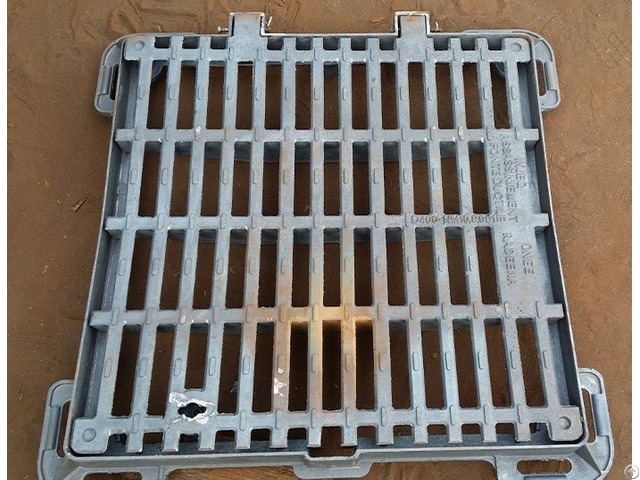

roads drainage Grating

Product superiority:

1Anti-theft

2Load-bearing great

3Corrosion resistant

Use: Drainage ductile iron grating are mainly used for drainage of municipal roads and general roads, factory drainage, basement drainage, general building drainage facilities and inspection well facilities.

Advantage: The tensile strength and pressure resistance of the ductile iron grating are good.

Compared with the resin composite material and the cement material, the elongation rate is much improved, and it has good pressure resistance and is not easily damaged.

Drainage ductile iron grating superiority:

1Anti-theft

2Load-bearing great

3Corrosion resistant

4Opens conveniently

5Superior safety performance Factory drainage Grating Description:

Materials: ductile iron (GGG50), grey iron (GG20)

Standard: EN124, BSEN124, UNIEN124

Load weight: B125 C250 D400 E600

Specs: according to all client's drawings

Packing: ply wooden pallet / case with plastic layer

Paint: anti-rust bituminous painting

It is widely used in the urban drainage system and road facilities.

Type: rounded, square, rectangular, double triangle, double seal Dimension:

Code Cclass Material Grating Frame Height Weight

Grating-03 D400 Ductile Iron 800x800 mm 930x930 mm 100 mm 76 KGS/Set
