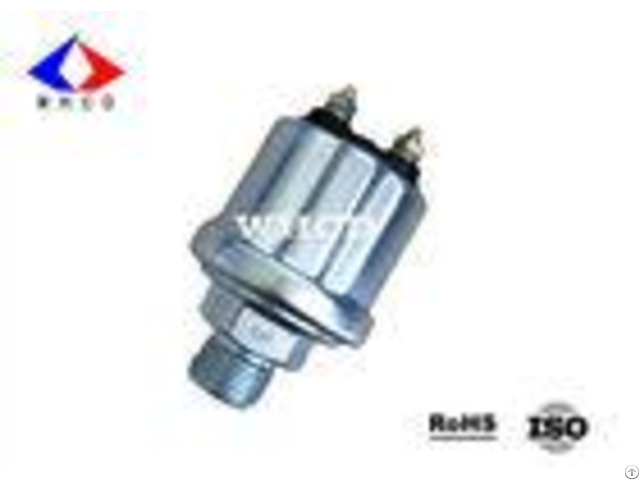

Two Wires Tread Fitting M18x1 5 Oil Pressure Gauge Sensor For Truck Meter - China

Tread Fitting M18x1.5 Oil Pressure Gauge Sensor For Truck Meter Product Description The oil pressure sensor is installed on the main oil channel of the engine.

When the engine runs, the pressure measuring device detects the pressure of oil and transfers the pressure signal to the electrical signal to the signal processing circuit.

The pressure signal is connected to the oil pressure meter.

When the voltage is below the alarm voltage, the alarm circuit output the signal and pass through, alarm light is on.

Application Automotive Engine Automotive Brake System Air Compressor Agricultural Machinery Engine Generator Engine Diesel Engine Hydraulic Control System Technical Data - - - - Operating voltage | 6~24V | Conducting power | < 5W | Operating temperature | -25 ~120 (120 MAX 1H) | Measuring range | 0~5 Bar or 0~10 Bar | Alarm | 0.8 Bar or 1.4 Bar | Output signal | 10~184 | Thread fitting | NPT1/4, NPT1/8, M10, M10x1, M16x1.5 or customized | Protection rank | IP66 | - - - - Feature It combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature, etc.

Instruction This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display.

When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright.

This product is simple in structure, convenient in use and reliable in performance.

Cautions 1 - this product needs a wrench to be clamped to the six side nut and tighten the thread.

The maximum tightening torque is 17N.m. 2 - the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Our Service 1 - High quality with competitive price & stock.

2 - Product Warranty: 12 Months 3 - Sample order or Small order Accept, 4 - OEM Manufacturing welcome: Product, Package.

5 - Fast Delivery: delivery within 7 - 10 working days 6 - Easy to pay, various payment methods.

7 - We will reply you in 24 hours.

If you don't receive our reply, please kindly re-sent mail or give a call any time.

8 - You may consider to send the defective item via economical way, and we can send back together with your next order.

Q & A - - - - Question | Answer | Whats your main products? | oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor | Where are you? | Wuhan city, Hubei Province, China | Do you accept OEM? | Yes, OEM is welcomed | Are you manufacturer or trading company? | We are manufacturer with export license.

| Do you provide sample? | Yes | Do you have any certificate? | Yes, we have ISO/TS16949, RoHS | Whats the MOQ? | Theres no limit for MOQ | - - - - Company Introduction Wuhan Chidian Technology Co., Ltd is a professional manufacturer specializing in automotive sensor, located in the beautiful Wuhan Eco-Tech Development Zone.

Mainly engaged in R&D, production and sale of automotive pressure sensors.

We have first-class technical team, with strong R & D capability and rich experience in production management.

In the production line, we have the most advanced and completed sets of equipment to ensure product quality and reliability.

Our product quality has won user community's good reputation.

Looking forward to the future, the company is moving into the fast lane of development and will continue to adhere to the concept of creating quality products to serve global customers.

Our mission is to be the most valuable and competitive automotive pressure sensor in the world.
