Zjbeny Bhs 10 1 1000v Dc Solar Pv Combiner Box - China

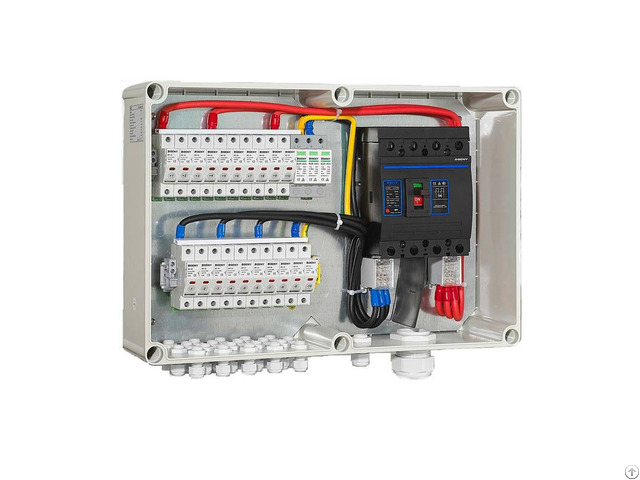

ZJBENY BHS-10/1 1000V DC Solar PV Combiner Box 10 In 1 Out 250A DC Isolator Switch for On/Off Grid Solar Panel System

1000V DC bus-box for solar photovoltaic systems The BHS-10/1 DC bus-box is equipped with a solar DC switch up to 250A and 1000V.

The Type 2 DC SPD protects the DC circuit from overvoltage and the DC fuse provides overcurrent protection.

The compact IP66 plastic housing design makes operation and maintenance easier.

There is also the option of a more cost-effective IP65 metal housing.

(BHT-10/1) Features: * 1000V * 10 string inputs * 1 string output * DC switch up to 1000V 250A * TUV certificate The shell: * IP66 outdoor protection rating * UV resistant, flame retardant PC material Model 2 DC Arrester: BUD-40/3 * Overvoltage protection * 1000V 40KA * IEC61643 / EN50539 * Top inverter brand recommendation DC fuse: BR-30 * Overcurrent protection * LED indicator light * Safe finger touch * 10x38mm Littel 1000V 15A

Model BHS-10/1

Certificate TUV

Voltage IEC60947.3, AS60947.3: 2018

Warranty 5 Years for any quality problems

Protection Degree IP66
