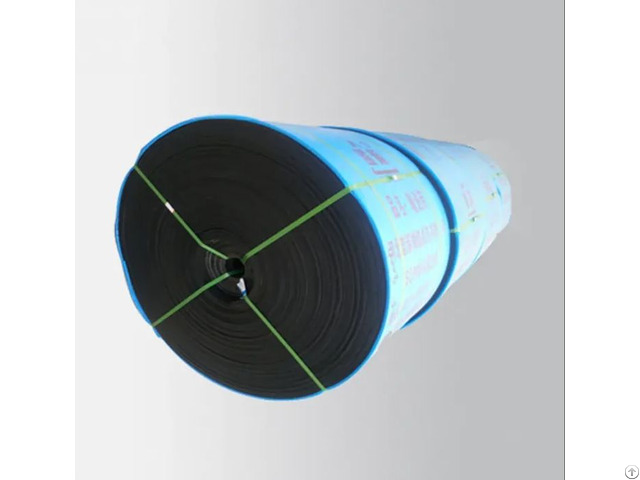

Steel Cord Conveyor Belt

Steel cord conveyor belts are widely used in high strength, long distance and heavy load transportation of materials, and they are also used in high strength and short distance transportation of materials on special occasions.

Application Fields

Metallurgy, steel plant, building material and construction, energy, chemical, machinery equipment and port.

Tensile Strength & Width

Tensile strength: 500-4000/mm

Width: 500 ~ 2400mm.

Features and Advantages

1 - Lower unit cost of transportation

Fewer conveyors and splices, shorter take-ups, and reduced belt inventory add up to significant cost savings right up front.

Longer belt life, life-long splices, excellent belt training, and reduced downtime save you even more down the road.

It all adds up to a lower cost-per-ton of material conveyed, which can make a major improvement in your bottom line.

2 - Small elongation in use: The belts need only a very short take-up stroke distance.

3 - Small diameter of drive pulley: The belt body has a layer of longitudinally arranged steel cords as its skeleton, and thus is resistant to flex fatigue.

Therefore, drive pulley of smaller diameter can be used to make the equipment more compact.

4 - High adhesion between rubber and steel cord: The steel cords are coated with zinc on their surface, and also the rubber used has the property of good adhesion with steel cords.

Therefore, the rubber is tightly adhered to the steel cords and is resistant to shock and difficult to drop, so the rubber belts are long in life.

5 - Even tension of steel cords: Out of our advanced techniques in manufacturing, the steel cords are very evenly arranged and have the same tension, so the belts are well balanced in running and difficult to run away.

6 - Good troughability: As the belt body has no transverse skeleton, it is easy to from a deep trough, so the belts can load more materials and prevent the materials from escaping.

7 - Inspection of the belt with X-rays: Users can X-rays to inspect damages of the skeleton steel cords on the conveyor machines to prevent accidents from happening.

Product Specification

Specificaiton Belt Width mm 650 800 1000 1200 1400 1600 1800 2000 2200

ST630 60 75 95 113 133 115

ST800 60 75 95 113 133 115 171

ST1000 50 63 79 94 111 126 143 159 176

ST1250 50 63 79 94 111 126 143 159 176

ST1600 50 63 79 94 111 126 143 159 176

ST2000 50 63 79 94 111 126 143 159 176

ST2500 40 50 64 76 89 101 114 128 141

ST2800 40 50 64 76 89 101 114 128 141

ST3150 40 50 64 76 89 101 114 128 141

ST3500 50 64 76 89 101 114 128 141

ST4000 50 64 76 89 101 114 128 141

ST4500 59 71 84 96 109 121 134

ST Series Steel Core Conveyor Belt Specfications and Main Technical Datas

Type Longitudinal Tensile Strength N/m Max.

Dia.

of the Core mm Pitch of Cord mm Top Cover Thickness mm Bottom Cover Thickness mm Reference Weight kg/m2 mm Recommeded Diameter

ST630 630 3.0 10 5 5 18.3 500

ST800 800 3.5 10 5 5 19.8 500

ST1000 1000 4.0 12 6 6 23.5 630

ST1250 1250 4.5 12 6 6 24.7 800

ST1600 1600 5.0 12 6 6 26.9 800

ST2000 2000 6.0 12 8 6/8* 34.3 1000

ST2500 2500 7.2 15 8 6/8* 38.0 1250

ST2800 2800 7.5 15 8 8 39.0 1250

ST3150 3150 8.1 15 8 8 41.5 1250

ST3500 3500 8.6 15 8 8 42.8 1400

ST4000 4000 8.9 15 8 8 46.1 1400

ST4500 4500 9.7 16 8 8 48.3 1600

Standard

Series Types Standard

1 Common GB/T9770-2013, DIN22131-88, AS1333-94

2 General Flame Resistance HG2539-93, GB/T9770P, DIN22131K, reference GB/T10822

3 Flame Resistance MT668-2008, GB21352-08, AS1333

4 Anti-Tearing HG/T3646-99

5 Heat Tesistance HG/T2297-92, GB/T20021-2005

6 Wear Resistance GB/T9770D, DIN22131W

7 Cold Resistance HG/T3647, GB/T9770P
