Double Layer Woven Dryer Fabric For Paper Making - China

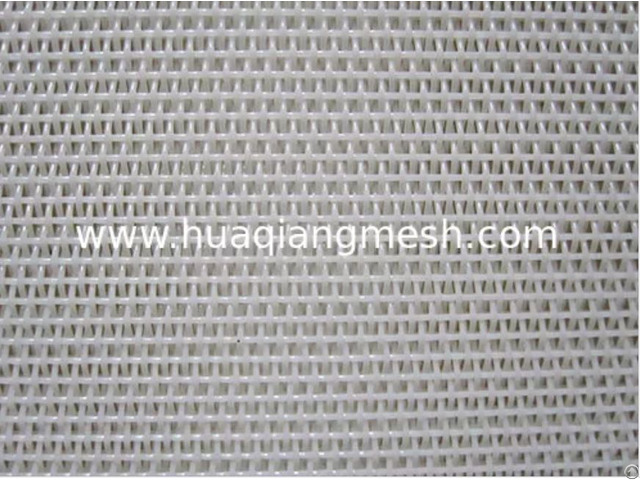

Double layer woven dryer fabric for paper making

Polyester woven dryer fabrics/Polyester woven dryer screen

Woven dryer screen made from high grade flat monofilament and round monofilament polyester yarns.

According to the weaving, woven dryer fabric can be divided into 3-shed, 4-shed.

According to the category, polyester dryer fabric can be divided into one and a half layer, double layer and rectangular wire fabric.

According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring joint.

3-shed one and a half polyester dryer fabric is suitable for drying papers below 70g.

4-shed double layer polyester dryer fabric is suitable for drying papers above 70g.

We offering for increased drying rate, improved paper quality and energy savings.

It suitable for

the fore several heating box of the drying zone, quality papers can use all.

Material: Polyester, Teflon, PPS.

Color: White, Red.

Seam type: Pin joint, Spiral seam.

Application: Used in the dryer section of paper machine to produce newprint paper, writing paper, carbonless paper, copper print, etc.

Technical data of Polyester woven dryer fabrics

Type Fabrics

number Thread

diameter(mm) Strength

(N/cm) Weight

(kg/m2) Thickness

(mm) Air

permeability

(m3/m2 h) warp weft surface Ring joint

spiral joint Three-shed D6352 0.50 0.50 2000 900 1400 1.06 1.9 8000

Four-shed D6442 0.50 0.50 2000 900 1400 1.26 2.1 12000

Round wire

dryer fabrics D8006 0.50 0.70

0.30 2200 900 1500 1.3 1.75 6800

Flat wire dryer fabrics D8006-1 0.58

0.37 0.5

0.5 2000 800 1400 1.2 1.5 2500 D8006-5 0.29

1.00 0.9/0.98 2600 900 1800 1.33 1.54 19
