Galfan Hexagonal Wire Mesh Woven Steel Gabion Boxes With Astm A975 97 Standard - China
price: check with company for price
Galfan Hexagonal Wire Mesh Woven Steel Gabion Boxes With ASTM A975-97 Standard galfan gabion/galvanized gabion 1 - Standard: ASTM A975-97 2 - Galvanized at least 250g/m2 3 - Zn-5% or10%Al alloy 4 - Fast delivery.

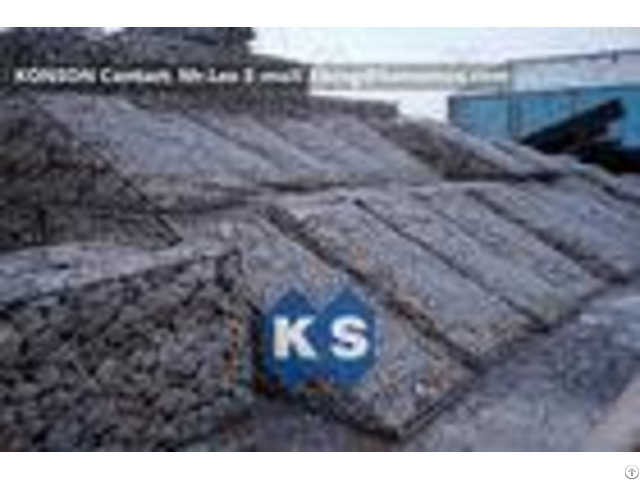

galfan gabion/galvanized gabion Gabions is made of double twisted hexagonal woven steel wire mesh, as per ASTM A975-97 Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retainingwalls, channel linings, and weirs for erosion control projects.
The steel wire used in the manufacture of the gabion is heavily
Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel.
A PVC coating is then applied toprovide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil orwherever the risk of corrosion is present.
The PVC coating has a nominal thickness of 0.02 in.
(0.50 mm).
The gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9 m) centers.
To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter.
Engineering projects: Hexagonal Wire Netting/ Hexagonal Wire Mesh/ Gabion Boxes/ Gabion Baskets/ Stone Cages/ Welded Wire Mesh.
Gabion specifications.
Applications:
Control and guide of water or flood Preventing of rock breaking Rock fall protection Water and soil protection Bridge protection Strengthening structure of soil Protection engineering of seaside area Port project Keep off dust wall Roadway protection.
Company Contact:
- Posted By: Konson Industrial Co., Ltd.
- Phone: 86-0510-83552045
- Address: YANGSHI INDUSTRIAL ZONE A-2, WUXI, JIANGSU, CHINA, Wuxi , Jiangsu , China
- Email:
- Website: http://www.gabionmachines.com/
Published date: March 7, 2018
- Business Description: Founded in May of 1999，KONSON INDUSTRIAL CO., LTD. is the earliest company specialized in Gabion boxes, reno mattress, Hexagonal Wire Netting, Gabion Retaining Wall, Gabion Machine and Gabion Production Line in China.
