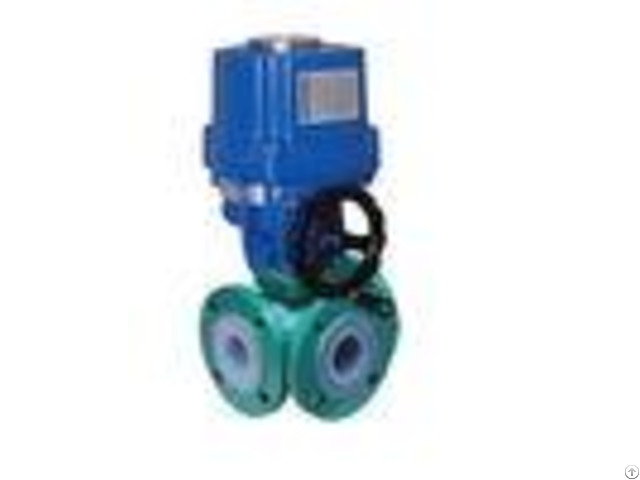

High Strength Ptfe Lined Valves Cracking Resistance Api 6d Asme B16 Standard - China
price: check with company for price
Material Specification - - - - No.
| Name | Material | 1 | Body | A216 WCB | A351CFB/A351 CFBM | A351 CF3/A351 CF3M | 2 | Stem | 2Cr13(SS420) SS410 17-4PH | 3 | Shaft sleeve | SS304 | 4 | O-ring | VITON, VITION+FEP, VITON+PFA | 5 | Disc | A216WCB+Lining material | CF8/CF8M+Lining material | CF3/CF3M+ Lining material | 6 | Seat | PTFE RPTFE PFA FEP PO | 7 | Elastomer backing | Silicone rubber, VITON | 8 | Body bolt | A193 B7 | A320 B8 | A193 B8M | 9 | bolt | A193 B7 | A320 B8 | A193 B8M | - - - - Technical Specification - - - - Design& Manufacture Standard | HG/T 3704 - GB/T 12238 | API 608 | Face-to-face Dimension | HG/T 3704 - GB/T 12221 | ASME B16.10 | Flanged Standard | HG/T 3704 - GB/T 9119 | ASME B16.5, JIS B2220 | Inspection and Test Standard | GB/T 13927, JB/T 9092 | API 598 | Nominal Diameter | DN50-DN1600 | 2-64 | Nominal Pressure(MPa) | 1.0 | 1.5 | 150LB | Pressure Test(MPa) | Shell Test | 1.5 | 1.5 | 1.5 | High Pressure Sealing | 1.1 | 1.1 | 1.1 | Low Pressure Sealing | 0.6 | 0.6 | 0.6 | Temperature Range() | PTFE: -30~180 PFA: -30~200 FEP: -30~150 PO: -10~80 | Applicable medium | Strong corrosive medium i.e. hydrochloric acid, Nitric acid, Hydrofluoric acid, Liquid chlorine, sulfuric Acid and Aqua regia etc.
| - - - -
Company Contact:
- Posted By: Kaysuns Industry Ltd.
- Phone: 86-577-85511172
- Address: Room 901, Jinri Jiayuan, South Tangjiaqiao Rd, Wenzhou, 325000 China, Wenzhou , Zhejiang , China
- Email:
Published date: March 27, 2018
- Business Description: Kaysuns is a youthful and energetic company specialized in the area of stainless steel and special alloy materials.
Based in China, we always have well grasp of the local and international market trends and are therefore ready to provide products from the very latest materials.
