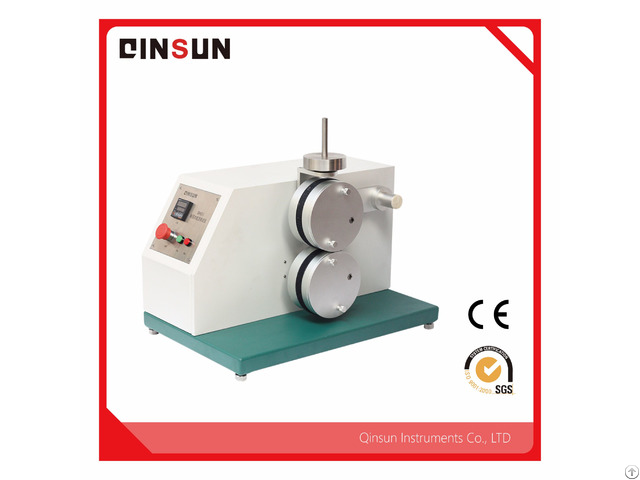

Velcro Fatigue Test Equipment - China

This machine is suitable for the shear strength and peel strength test between two layers for all kinds of touch and close fasteners.

1 - DIN-3415 Textile touch and close fasteners; requirements.

2 - SATRA TM123 Footwear - test method for touch and close fasteners .

3 - ISO 22776 Test method for accessories: Touch and close fasteners — Shear strength before and after repeated closing.

4 - GB/T 3903.20 Footwear.

Test methods for accessories: Touch and close fasteners - Peel strength before and after repeated closing.

5 - GB/T 3903.21 Test method for accessories: c — Shear strength before and after repeated closing.

6 - GB/T 23315-2009 Touch and close fasteners.

Items Parameters

Driving wheel speed 60±5rpm

Time of steer and switch 30±0.5sec

Pressure of sample 1.0±0.1N/mm

Counter LCD 99, 999, 999

Dimension(W×D×H) 53×55×67 cm

Weight 60kg

Power 1∮AC220V 50/60HZ 3A (in accordance with county or user)
