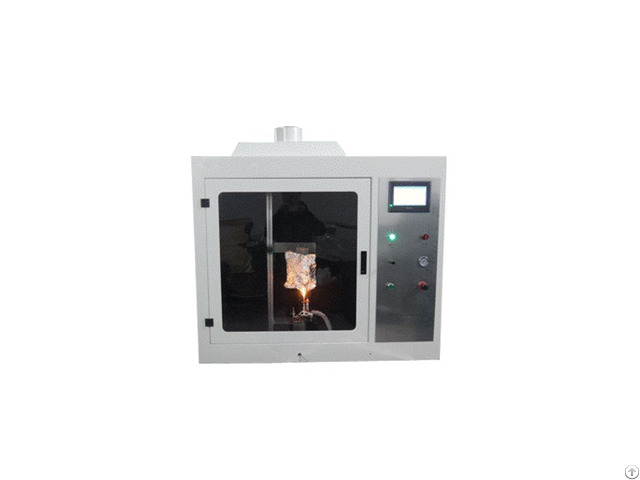

Protective Clothing Vertical Flame Spread Tester - China

introduction:

the protective clothing flame spread tester is made according to iso 15025 standards.

it can test the flame spread state under the small flame.

it is used to simulate the protective clothing at the risk of ignition to assume the flame spread performance.

it is also suitable for fabric material or other similar functional uses of combustible materials.

application：

the instrument is applied for the testing of fire hazards using combustible materials, like fabric or other similar functional materials.

standard:

bs en iso 15025: 2002 technical parameters： items: parameters

dimension: 1200mm x 600mmx 1200mm

timer accuracy：0.1s

power supply ：220v, 50/60hz features:

1 - the combustion chamber is made of stainless steel; nice, corrosion-resistant; dimension: 1200mm x 600 1200mm

2 - all sample holder is made of stainless steel manufacturing, corrosion resistance;

3 - standard burner; flame height level 25mm ± 2mm; vertical 40mm ± 2mm; nozzle opening 0.19mm;

4 - the time is automatically recorded, automatic storage; timer accuracy 0.1s;

5 - plc with touch screen control system; to achieve more intelligent testing; automatically record test data, automatic storage;

6 - imported brands gauge and control valve, the gas pressure is more stable;

7 - imported needle valve, precise control of the flame height; flame is more stable;

8 - high intelligence, simple operation, easy to operate;

9 - with the bottom surface of the combustion and combustion of two sample holders; made of stainless steel;

10 - automatic ignition system, automatically turns off;

11 - equipped with a flame height gauge;

12 - pulsed high voltage electronic automatic ignition.

13 - the timing button with the plc automatically records storage combustion as time-consuming.

14 - without holding the stopwatch or timer manuscript; the system automatically records the test of time, and generates test reports;

15 - the test time and time plus a touch screen can be set to fire.

meet a variety of test standards;

16 - the surface combustion and bottom surface combustion burner test program on the touch screen can be switched.

protective clothing vertical flame spread tester
