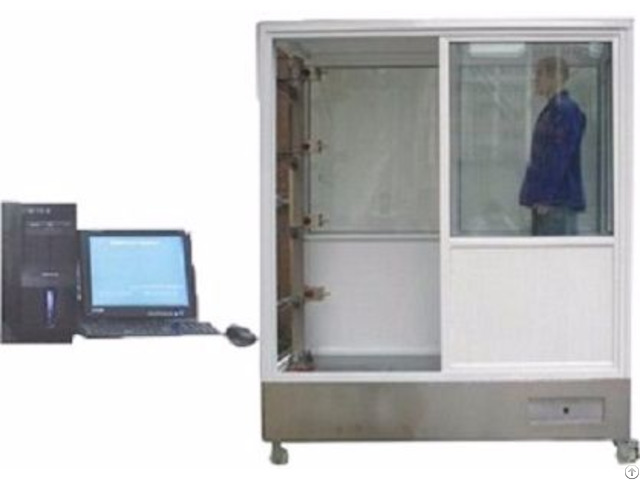

Protective Clothing Splash Spray Liquid Thickness Tester - China

Protective clothing splash spray liquid thickness tester do the test to the manikin model which wears the indication and protecting clothing.

Spray the solution to the productive clothing on manikin or human, check the internal surface of protective clothing or the external surface of indication clothing on manikin or human.

Through compare with the standard contamination area, judge whether the productive clothing meeting requirement.

Application This instrument can test the splash spray liquid thickness of water adsorption material made indication clothing.

Judge the splash spray thickness by the dirt area on indication clothing.

Standard

GB 24540-2009《protective clothing against liquid acids and alkalis 》Appendix D

ISO 6529-2013 Protective clothing-protection against chemicals-determination of resistance of protective clothing materials to permeation by liquids and gases.

BS EN 463-1995 Protective clothing-protection against liquid chemicals- Test method determination of resistance to penetration by a jet of liquid (Jet test) BS EN 468-1995 Protective clothing– protection against liquid chemicals, performance requirements for chemical protective clothing with spray-tight connections between different parts of the clothing.

Features

Special manikin( unique splash spray use special manikin, beautiful appearance)

Constant speed turn table made of waterproof material, spray time can preset, automatic count.

Whole set protection system surround the machine completely, ensure the lab sanitary and operator safe.

Technical Parameters

Item Parameter

Language Chinese /English

Test Mode Dynamic, Custom

Turntable speed 1 rad/s

Spray nozzle installation space on spray rod 450mm

Nozzle spray angle 75°

Nozzle spray pressure 300kPa

Nozzle flow velocity (1.14±0.1)L/min

Time set range 0-99.99s

Resolution Ratio 0.01s

Power supply 120 /230 V, 50/60 Hz, 2A/1A
