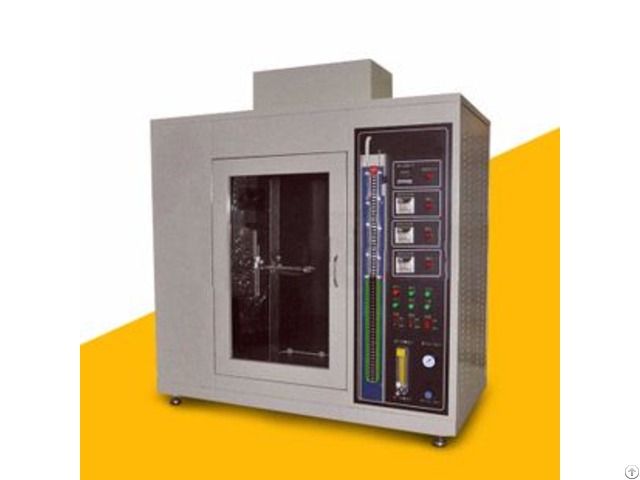

Plastic Materials Horizontal Vertical Flammability Tester - China

Horizontal and vertical combustion tester is to simulate the early situation of a fire around the electrical environment .

By simulating the actual situation, the tester can assess the material fire risk, product resistance to ignition and safety characteristic of no flame spread .

Horizontal and vertical combustibility tester can test material’s burning performance, burning rate, flame spread, combustion strength and product flame resistance properties.

Applications

Horizontal and vertical combustion tester is mainly used for measuring the burning performance of plastic, rubber or film at a predetermined fire source, to determine its fire resistance rating.

It can be applied not only for the research, production and quality control departments of lighting, low-voltage electrical appliances, household appliances, electrical machine, tools, instruments as well as electrical connections and other electrical and electronic plastic or rubber products and component parts, but also for the type approval of insulation, plastic, fire blocking material or other solid combustible materials industry.

Features

◆ The ultra - large transparent observation window makes it easy to observe the burning state of the specimen;

◆ Humanized design of the door opening way.

It is an easy way to touch the sample and burner;

◆ PLC touch screen control is easy to set parameters;

◆ Different test methods modular is easy to operate; Standards

UL94 Test for flammability of plastic materials for parts in devices and appliances

ISO 1210 Plastics -- Determination of the burning behaviour of horizontal and vertical specimen

GB/T2408-2008/IEC60695 -11-10: 1999 Plastics-Determination of burning characteristics- Horizontal and vertical test

GB/T 5169.16-2008/IEC 60695-11-10 : 2003/ASTM D635 Fire hazard testing for electric and electronic products.

Part 16: Test flames.

50W horizontal and vertical flame test methods

GB/T 8332-2008/ISO 9772-2001/ASTM D 4986 Test method for flammability of cellular plastic-Horizonal burning method

ASTM D4804 /ISO 9773 Standard test method for determining the flammability characteristics of non-rigid solid plastics Accessories

Configuration

Base unit

F241G Calibration copper

F241G01 Cotton tray

233G02 HB Support Fixture

Optional parts

F241H Foam Support Fixture

F241G03 Support-Gauze

F241G04 Burner Wing Tip meets the requirements of ASTM D4986 standard

F241G05 Specimen Mandrel Form Technical Parameters

Items Parameters

Inter Size 850mm×600mm×1000mm

Vent (above) Φ135mm×85mm

Burning angle 45 °, 90 ° (0 °) Adjustable

The specimen holder can be moved horizontally vertically

Flame time 5s, 10s, 30s, 60s optional

Combustion timer Timer (accurate to 0.1s)

Burner Length 100 ±10 mm, Inner diameter 9.5 ±mm 0.3, ASTM D 5025

Outline size 1200mm * 620mm * 1300mm

Weight 90kg

Power supply 220V, 50Hz
