Off Line Thickness Measurement Device For Pe Film And Aluminum Foil Sheets - China

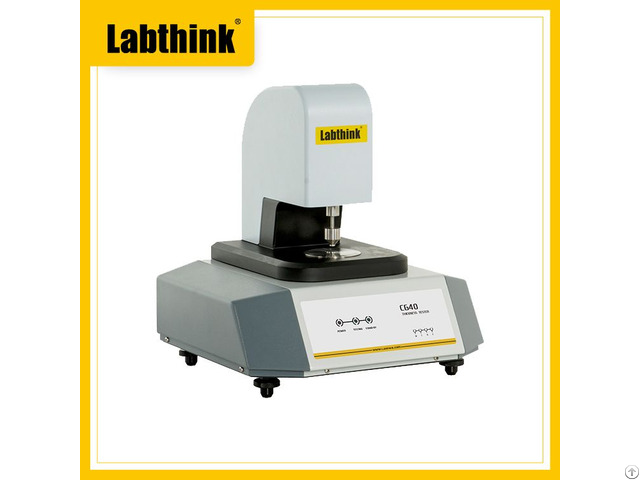

C640 Thickness Tester is a high precision mechanical contact method thickness tester, which can be used for thickness measurement of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, and solid insulation materials, etc.

Auto sampler is optional, which is designed for multiple successive points thickness measurement.

Test Principle

The pre-conditioned specimen is placed on a flat test plane, the pressure foot which is paralleled to the test plane will drop down on the upper surface of the specimen with certain pressure applied on.

The displacement sensor with the pressure foot will detect the space between the upper and lower surface of the specimen, which is the thickness of the specimen.

Test Standards

ISO 4593, ISO 534, ASTM D6988, ASTM F2251, GB/T 6672, GB/T 451.3, TAPPI T411, BS 2782-6, DIN 53370, ISO 3034, ISO 12625-3, ISO 5084, ASTM D374, ASTM D1777, ASTM D3652, GB/T 6547, GB/T 24218.2, FEFCO No 3, EN 1942, JIS K6250, JIS K6783, JIS Z1702 -- Test Range： 0 ~ 2mm

--Resolution：0.1μm
