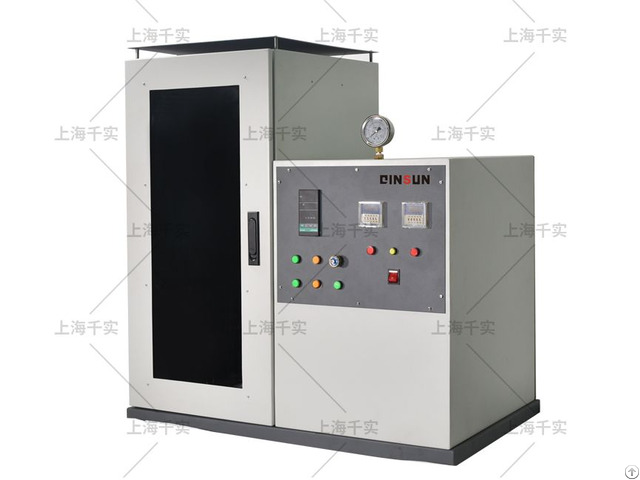

Medical Face Mask Flammability Tester - China

The device is mainly used in the field of medical protection, and also can also be used for

testing flame retardant properties of other textile coating materials.

GB 19083-2010 Technical requirements of

medical protective masks

YY 0469-2011 Technical requirements of

medical surgical masks-Blood penetration

test device

GB 2626-2006 Respiratory protective products, Self - priming filtering particulates respirator-flammability

BS EN136-1998 Respiratory protective de-

vices -Full face masks - Requirements testing, marking Items Parameters

Linear velocity of head automatic movement (60±5)mm/s

Flame height 40±4mm

Flame temperature measurement Thermocouple detection

Burner height adjustment range 30mm

Metal head mold surface thickness 2~3mm, Resistance to flame combustion

Combustion timer 0~9999.9s

Accuracy ±0.1s

Power supply AC220V, 50Hz, 500W

Weight About 30kg

When the flame is (20±2)mm above the burner, the temperature is (800±50)℃.

distance between the top of the burner and mask lowest point is(20±2)mm.
