    • Jbw 300z Computer Control Room Temperature Automatic Charpy Impact Testing Machine China - China

    price: 12000.00 Dollar US$

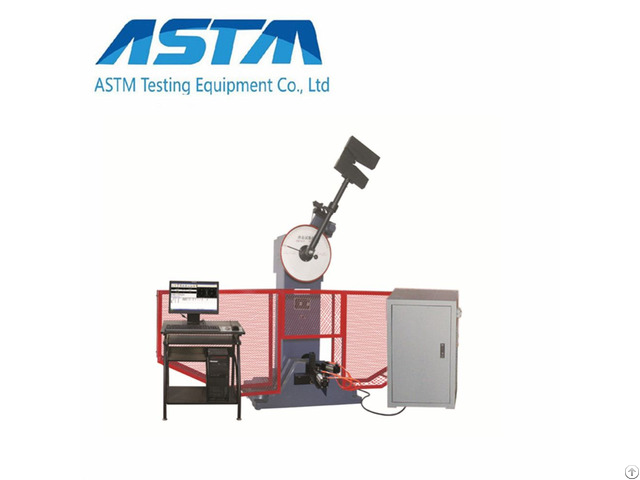

    Jbw 300z Computer Control Room Temperature Automatic Charpy Impact Testing Machine China

    Products Photos Catalog Jbw 300z Computer Photos Catalog

    t is mainly used in measurement and quality inspection, technical supervision departments, metallurgy and iron and steel, machinery manufacturing, pressure vessels, automobile production, universities, research institutes and other industries.

    Technical Parameters Computer Control Room Temperature Automatic Charpy Impact Testing Machine Machine model JBW-300Z Impact energy 300J 150J Dial scale range and indexing value Energy range 0-300J 0-150J Indexing value for each cell 2J 1J Pendulum torque M=160.7695N·m M=80.3848N·m Pendulum preparing angle 150° Pendulum shaft center of rotation to the impact point distance (sample center) 750mm Impact speed 5.2m/s Specimen support span 40mm Round corner of support jaw R (1.0~1.5)mm (1mm is special ordered.

    ) Blade curvature radius R (2.0~2.5)mm (8mm is special ordered.

    ) Specimen holder support surface angle 11° Impact blade angle 30° Impact blade thickness 16mm Measuring angle range 0-360° Angle resolution ≤0.06° Specimen dimension 10×10×55 mm (Thickness 7.5mm, 5mm is special ordered.

    ) Specimen box capacity 10 pieces Delivery speed ≤4S Machine host weight 430kg Power supply Three phase four-wire, 380V 50Hz 400W


    Company Contact:


    • Phone: +86 18854162067

    • Address: No.9, Tiepei Road, Huaiyin District, Jinan City, Shandong Province, Jinan , Shandong , China

    • Email: Email


    Published date: November 11, 2021

    • Business Description: Our factory is the professional manufacturer in the Chinese Material Physical Testing Machine Industry, which include the UTM and TTM series, Impact Test series, Compression Test series, Cupping Tester series, Hardness Tester and Metallographic products,etc.

      If you have any requirement about the testing equipment, please feel free to contact us.
