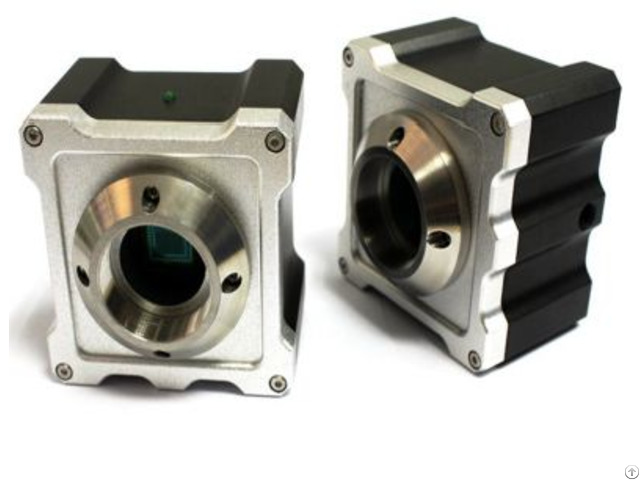

Industrial Camera G1td14c Electronic Shutter - China

14.0 Mega Color USB3.0 Camera Model G1TD14C

Sensor MT9F002

Image Sensor 1/2.3” Cmos, color

Resolution&Frame rate 4fps@4608x3288

Pixel Dimension 1.4μmx1.4μm

Scanning Mode Progressive Scan

Shutter Electronic Rolling Shutter

Exposure time 0.02~300ms

Image Data Format 8Bit/10Bit/12Bit

Sensibility 0.724V/lux-sec(550nm)

Spectral Response Figure 400nm~650nm

SNR 35.5dB

Dynamic Rate 65.5dB

Exposure Control Auto Exposure /Manual Exposure/Area Exposure

White Balance Manual white balance/Once Key White Balance/Area White Balance

Programmable Control Camera working speed, image dimension.

shoot mode, image lightness, exposure time, gain, stroboscopic elimination, GAMMA, Contrast, RGB gain, saturation, block balance, Sharpness

Support system Windows XP(32bit)；Win7(32/64bit )；Win8(32/64bit)

Data Interface USB3.0 5Gbps

Product Indicator LED constantly Being on when power on and standing by and blink when working

Power Comsumption Work≤ 3.8w

Power Supply USB5V(Without External Power Supply Circuit)

Working Temperature 0℃~45℃

Storage Temperature -20℃~60℃

Working humidity 10%~90%RH(No Condensation)

Storage humidity 10%~60%RH

Lens Mount C mount
