Holykell 15mm 6000mm China Portable Ultrasonic Water Flow Meter - China

　1 - Introduction 　　1.1 Preface 　　Welcome to use new generation transit-time UF2000SW ultrasonic flow meter, please read the user manual carefully before using.

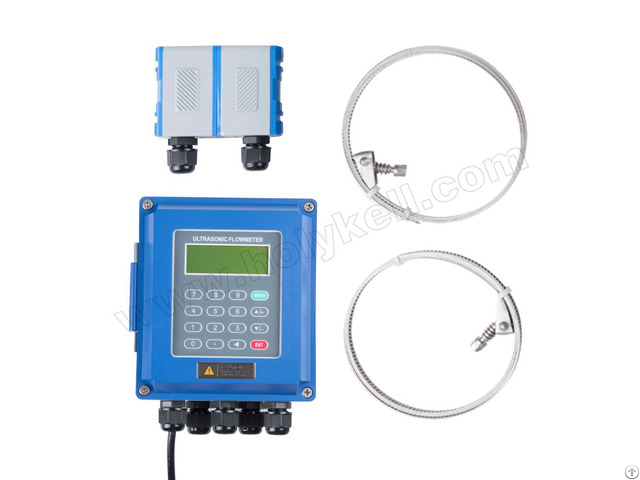

The wall-mount ultrasonic flow meter is designed to be installed in a fixed location for long-term flow measurement.

　　1.2 Features 　　◆ Linearity: 0.5%, Repeatability: 0.2%, Accuracy: ±1% 　　◆ Easy to operate.

　　◆ Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm 　　◆ Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.

　　◆ Powerful Recording Function, record the totalizer data of the last 64 days/64 months/5 years.

　　1.4 Optional transducer 　　◆ TS-1 clamp-on type transducer, pipe size from DN15-100mm 　　◆ TM-1 clamp-on type transducer, pipe size from DN50-1000mm 　　◆ TL-1 clamp-on type transducer, pipe size from DN300-6000mm 　　1.5 Typical application 　　The wall-mounting flow meter can be applied to a wide range of pipe flow measurements.

Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.

　　Examples are: 　　★ Water (hot water, chilled water, city water, sea water, waste water, etc.

); 　　★ Sewage with small particle content; 　　★ Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.

); 　　★ Chemicals (alcohol, acids, etc.

); 　　★ Plant effluent; 　　★ Beverage, liquid food; 　　★ Ultra-pure liquids; 　　★ Solvents and other liquids
