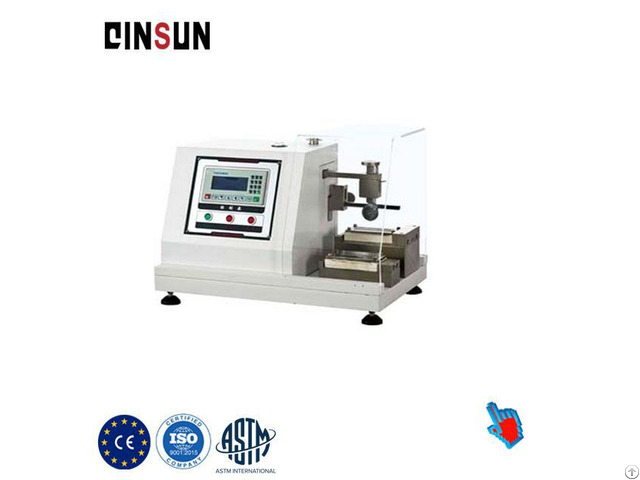

Gloves Cut Resistance Testing Machine - China

Safety Glove Cutting Resistance Test Machine and tester for testing the upper, protective gloves, leather and other materials, cutting strength, suitable for safety gloves protection area knife-resistant test, but not for those very hard material gloves.

Test Criteria:

EN ISO 20344, GB / T 20991, EN 388, EN 340 Detection Principle:

A rotating circular blade is cut and placed on a dedicated sample device.

The blade is reciprocated under a specified load, automatically counted, the test is automatically stopped, and the difference between the test before and after the test is made.

Test Results.

Technical Parameters:

1 - Number of test samples: 1 group;

2 - Horizontal movement displacement: 50mm;

3 - Blade rotation direction: the opposite direction of motion;

4 - Blade cutting speed: maximum 10cm / s;

5 - Load on blade: 5 ± 0.05 N;

6 - Round blade size: diameter 45 ± 0.5mm, thickness 3 ± 0.3mm;

7 - Total cutting angle: 30 ° -35 °;

8 - Blade material: hard tungsten steel, hardness of 740-800HV;

9 - Dimension: 550 × 400 × 250mm (L × W × H);

10 - Counter: LCD liquid crystal display, 0 ~ 99, 999, 999;

11 - Weight: 57.5kg;

12 - Power: 220V 50Hz;
