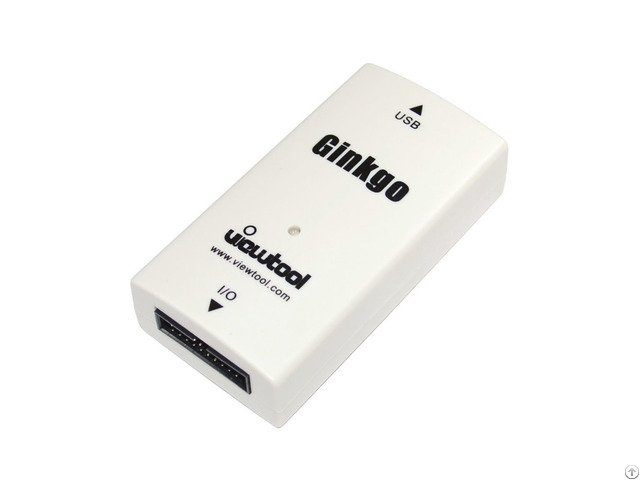

Ginkgo Usb Spi Adapter - China

Brand：ViewTool Model：VTG201A Typical Applications: - SPI device or chip control and debugging - Sensor with SPI interface testing - SPI flash or EEPROM programming - Assist in developing the SPI master via slave mode - nRF24L01 chip control - SD card reader via control MFRC522 - Pulse counter - Analog voltage measurement and GPIO input or output control - PWM signal output - USB to dual serial port/TTL (compatible with RS485 bus mode) Feature: - Support Linux, MAC OS, Windows, Android.

- USB bus power supply without external power; 5V and 3.3V output; max current 500mA; short circuit protection.

- Support SPI Host/Master mode and Slave mode up to 36M.

- 5 channels CS output up to 36MHz, frequency arbitrary adjustable.

- Attached open source software can be used control nRF24L01 chip and MFRC522 card reader chip.

- There is much kinds of free PC software compatible with the LabviEW interface to deal with different requirement.

- Support USB-SDI12, USB-EasyScale, USB-UART and counter, PWM output, ADC sampling, GPIO control and other functions.

- Block mode to transmit data.

Support GPIO mode, full duplex mode, half duplex mode and single bus mode.

- Multiple USB-SPI adapter can work in one PC at the same time (up to 100).

- It can output the RS485 signal (DE) and realize USB-RS485 by a TTL-RS485 module.

- The firmware can free update or change (such as I2C) by Own Bootloader program.

- Provide secondary development API and API detailed document and all kinds of languages platform application examples (Labview, C#, VC, Qt, Python, Labwindows/CVI, C++ Builder, VB, VB.

NET, Delphi, CodeBlocks etc.

).

Performance: - USB 2.0;bus-powered.

- Standard SPI mode up to 36Mbps; data transmission speed up to 800KByte/s with PC.

- 8 channels ADC (12bit) analog voltage signals (0~3.3V) measurements; max sampling rate 1MHz.

- 16 channels GPIO outgoing control high or low level and all pin compatible with TTL level.

- 4 channels Pulse counter input.

- 2 channels UART can output RS485 signal (DE); max baud rate up to 2.25Mbps.

- 8 channels PWM signal output; duty ratio (0%~100%); frequency range: 1Hz to 20MHz.

- 16 channels EasyScale bus signal output and bus timing can be adjusted.

- 2 channels SDI12 bus output (need external transceiver).

- Safe voltage: 0~5V - Size: 103mm×53mm×28mm; Weight: ≈200g - Temperature range: -40℃～85℃
