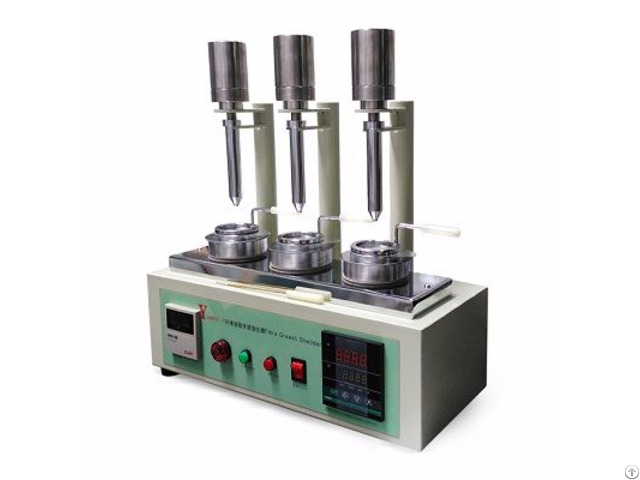

Fiber Oil Extractor And Extraction Apparatus - China

The rapid extraction of oil and oil is specially used to quickly obtain the oil content of the top and similar materials.

Through the container penetration and evaporation, it can detect the grease and oil content of wool and synthetic fiber samples.

You can optionally use the 1, 2 or 3 extraction head device.

Application It’s used to detect the grease and oil content for fiber, yarn, fabric and so on.

Technical Parameters

Items Parameters

Temperature range Room temperature to 250℃

Way of pressure Increase weights

Timer range 1-9999min

Temperature control accuracy ±1℃

Number of samplers 3

Dimension 100L×155W×350H (mm)

Extraction solvent Petroleum ether, ether, dichloromethane

Weight 4.4kg(9.7lb)

Power supply AC220V, 720W

Power Output 175 W
