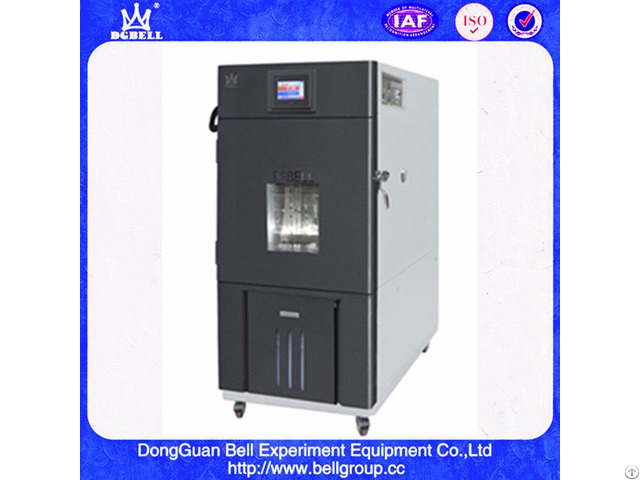

Fast Temperature Change Rate Environmental Test Chamber - China

Applications

1) This equipment mainly used for electric and electronic products, components and other materials high low temperature test, temperature change, damp heat etc.

Environment simulate reliability test.

2) Other usage except this may cause personal injuries and machinery damages.

Limitation

1) Inflammable, explosive, easy volatile specimen test and storage.

2) Corrosive material and biological specimen test and storage .

3)Strong electromagnetic source specimen test and storage.

Standard compliance

GB/T2423.1-2008(IEC600 68-2-1: 2007) Environmental testing - Part 2: Test methods - Tests A: Cold

GB/T2423.2-2008(IEC600 68-2-2: 2007) Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat

GJB150.3-1986 High temperature test

CJB150.4-1986 Low temperature test

Specifications

1 Effective Volume

150L

2 Inner Dimension

W500 mm*H600 mm*D500 mm

3 Overall Dimension

W700mm*H1700mm*D1370mm

Kindly remark: exact overall dimension pls refer to the final design drawing

Technical Parameters

1 Condition

Air cooling type under environment temp.

+5℃~+35℃, relative humidity≤85%.

No load(without specimen in the testing zone)

2 Temp.

Range

-40℃~+150℃

3 Temp.

Fluctuation

±0.5℃

4 Temp.

Deviation

≤±2.0℃

5 Temp.

Uniformity

≤2.0℃

6 Temp.

Heating Rate

7 Temp.

Cooling Rate

about4℃/mins, no load

8 Temp.

Overshoot

≤±2℃

9 Noise

≤70dB(A Level)

Packages

1 - Standard Export Plywood Case;

2 - the plastic film;

3 - the foam.

After sale service

We can offer the engineer to the overseas for repairing if you required, but you have to pay for his tickets and accommodation

Warranty

12 months for free.

Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
