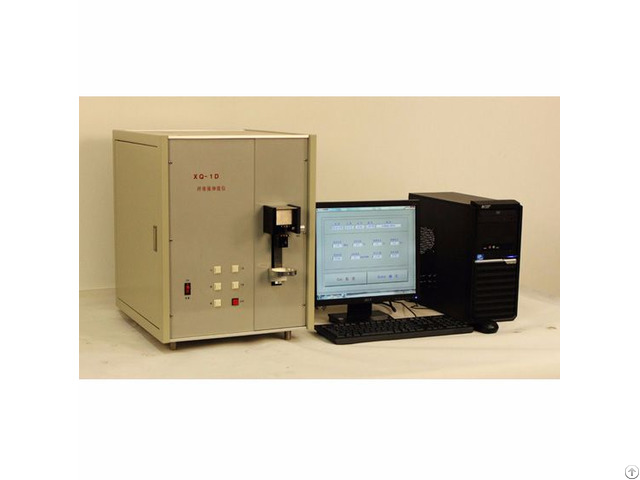

Electronic Single Fiber Strength Tester - China

Single Fiber Strength Tester, suiting to test the tension strength and elongation of chemical fiber, cotton, wool, ramie, silk, glass fiber, fine metallic thread, etc.

The single fibers are stretched to break on a constant elongation extensometer (CRE) under specified conditions.

The values of tensile strength, elongation at break, elongation strength, and initial modulus of the specimen obtained from the load-elongation curve or the data display acquisition system are suitable for the tensile test of chemical fiber and natural fiber Stretch performance test.

Standards GB/T21120 Synthetic fibers for cement, cement mortar and concrete

GB/T14337 Testing method for tensile properties of man-made staple fibers

ISO 5079 Textiles - Fibres - Determination of breaking force and elongation at break of individual fibres

GB/T13835.5 Test method for rabbit hair—Part 5: Breaking tenacity and elongation at break of single fibre ASTM D3822(M) Standard test method for tensile properties of single textile fibers

JIS L1015 Testing methods for man-made staple fibres

ASTM D1294/2524/3106/3217/1445 Method of test for breaking tenacity of wool fiber bundles

DIN53843-2 Testing of textiles– Loop tensile test for staple fibres

ISO3060 Textiles Cotton fibres Determination of breaking tenacity of flat bundles

BS5116, BS 4029 Hexagon socket screws and wrench keys: metric series —Part 5: Specification for hexagon socket set screws with cup point Technical Parameters Items Standard

requirements Design

requirements Implementation

methods

Load range According to the maximum load

requirements of the specimen 0-100cN Outsourcing, pressure sensor

Load error ±1% ≤±1% Sensor validity

Load resolution 0.1cN 0.1cN Sensor accuracy

Elongation range 100mm 100mm Outsourcing, displacement sensor

Elongation error 0.05, 0.1mm ≤0.01 Sensor validity

Elongation resolution 0.1% 1% Sensor accuracy

Clamp distance 2-20mm 1-20mm Machining

Lower gripper descent speed 5-20mm/min 1-100mm/min Outsourcing, stepper motor

Lower gripper stroke 100mm 100mm Machining Accessories The device can indicate or record the load applied to the specimen and the corresponding elongation value; (Force sensor)

The device can make load-elongation curve; (Integrated software)

The gripper suitably holds a single fiber at the desired nominal gauge length; (Manual, pneumatic and electric.

The pneumatic gripper avoids the influence of the measurement of the force sensor and also reduces the degree of damage to the special brittle material during the clamping process.

)

The device has a different stretching speed; (Stepper motor)

The device is used to wet the fibers in a wet state experiment so that the fibers are immersed during the test without affecting the test results; (Containers)

The device is used to precisely calibrate the instrument.
